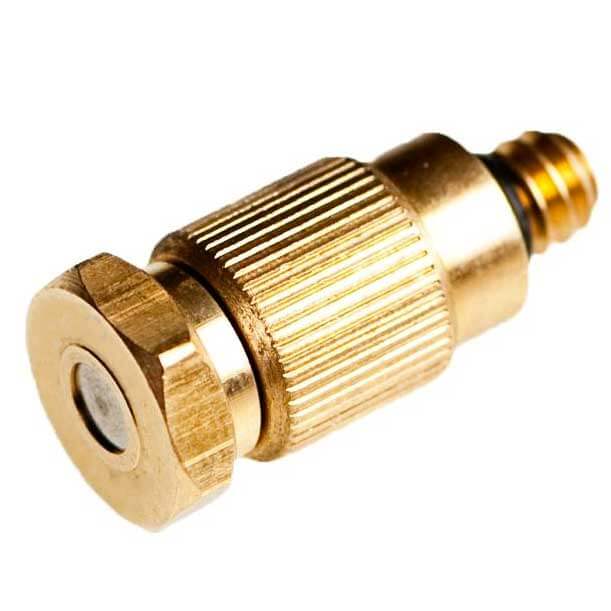

High Pressure, Brass, Hex, Anti-Drip Nozzle 10/24
$6.25
Product Description
Ultra-fine atomizing brass nozzles with stainless steel insert that can be hand tightened and seal with an O-Ring.

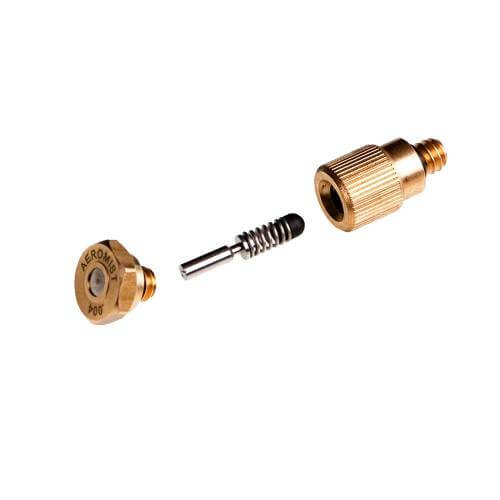

This nozzle is designed with a ball and spring to stop the flow of mist once the pump is shut off.
Nozzle can be disassembled for easy cleaning. Hex style with 10/24 nozzle thread.
Rated for high pressure only, 1000 psi. Not suited for pressure below 500 psi.
Two most common sizes for misting application is .008 (humid climate) and .012 (dry climate).
Additional Information
| Choose Model | Anti-Drip Hex Nozzle .004 x 10/24, Anti-Drip Hex Nozzle .006 x 10/24, Anti-Drip Hex Nozzle .008 x 10/24, Anti-Drip Hex Nozzle .012 x 10/24, Anti-Drip Hex Nozzle .016 x 10/24, Anti-Drip Hex Nozzle .020 x 10/24, Anti-Drip Hex Nozzle .024 x 10/24, Anti-Drip Hex Nozzle .028 x 10/24 |
|---|
Flow Rate Chart
| Orifice | Gallons Per Minute |
|---|---|
| .004 | .008 GPM |
| .006 | .013 GPM |
| .008 | .020 GPM |
| .012 | .028 GPM |
| .016 | .040 GPM |
| .020 | .050 GPM |
| .024 | .056 GPM |
| .028 | .064 GPM |
Customer Reviews
You must be logged in to post a review.
Related products
-
High Pressure, Brass, Hex, Anti-Drip Nozzle 12/24
$6.25 Select options This product has multiple variants. The options may be chosen on the product page -
High Pressure Stainless Steel, Hex, Anti-Drip Nozzle 10/24
$8.25 Select options This product has multiple variants. The options may be chosen on the product page -

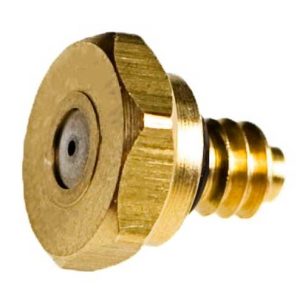

Replacement Head Only Brass Hex Style Nozzles 10/24
