Misting System Parts & Components Explained
At Advanced Misting Systems, misting systems are built using a combination of specialized parts and components that work together to deliver consistent, effective cooling. Understanding these components can help you choose the right system and ensure long-term performance for your setup.
Our misting systems are great for:
Backyards
Patios
Walkways
Barnyards
Athletic fields
And so much more!
At Advanced Misting Systems, we offer effective misting fans to help home and business owners beat the heat. Our various mister fan systems are an excellent way to help cool spaces down and provide relief from warm and dry weather. So whether you are sitting outside on your patio, hosting an outdoor party, or trying to keep a restaurant patio cooler, we offer multiple mister fan systems that can help make your environment much more comfortable. Learn more about our misting fan options below:

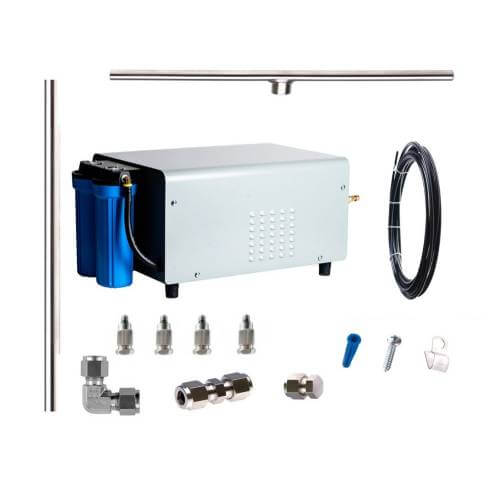

Overview: Parts of a Misting System
A misting system is not just a single unit but a coordinated system made up of multiple parts. The core components typically include:
- A pump
- Tubing to transport water
- Filtration (to maintain clean flow)
- Fine misting nozzles to disperse water evenly
In addition, most systems also include fittings and controllers, all of which contribute to proper pressure, distribution, and ease of use. Some systems can even include misting fans. Each component must be carefully crafted and selected to help ensure the system performs efficiently and reliably.

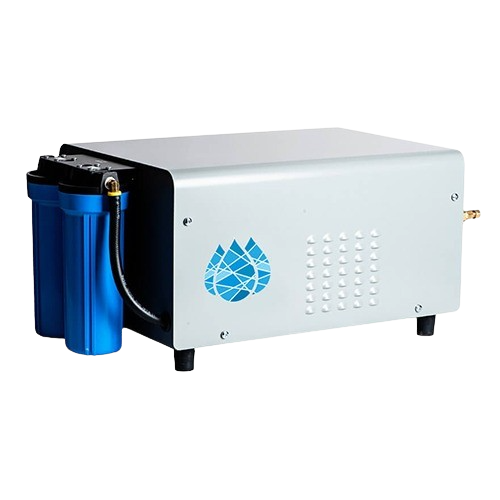

Misting Pumps
The misting pump is one of the most critical components, as it determines the system’s pressure and ultimately, how fine the mist will be.
Advanced Misting Systems offers pumps in multiple pressure ranges, including systems around 150 PSI, 300 PSI, and up to 1000 PSI or more, depending on the application.
- Low-Pressure Systems (150 PSI): These are simple systems that typically connect directly to a hose. They are easy to install but produce larger droplets, which can result in some surface dampness.
- Mid-Pressure Systems (300 PSI): These systems produce a finer mist, offering improved cooling performance while minimizing excess moisture. They are commonly used in residential settings as patio misting systems and light commercial applications.
- High-Pressure Systems (1000 PSI and above): High-pressure misting pumps create ultra-fine droplets that evaporate almost instantly, producing the most effective cooling without wetting surfaces. These are ideal for commercial and industrial settings, like greenhouse misting systems, as well as for large outdoor spaces.
Choosing the right PSI depends on your environment, humidity levels, and desired cooling performance.

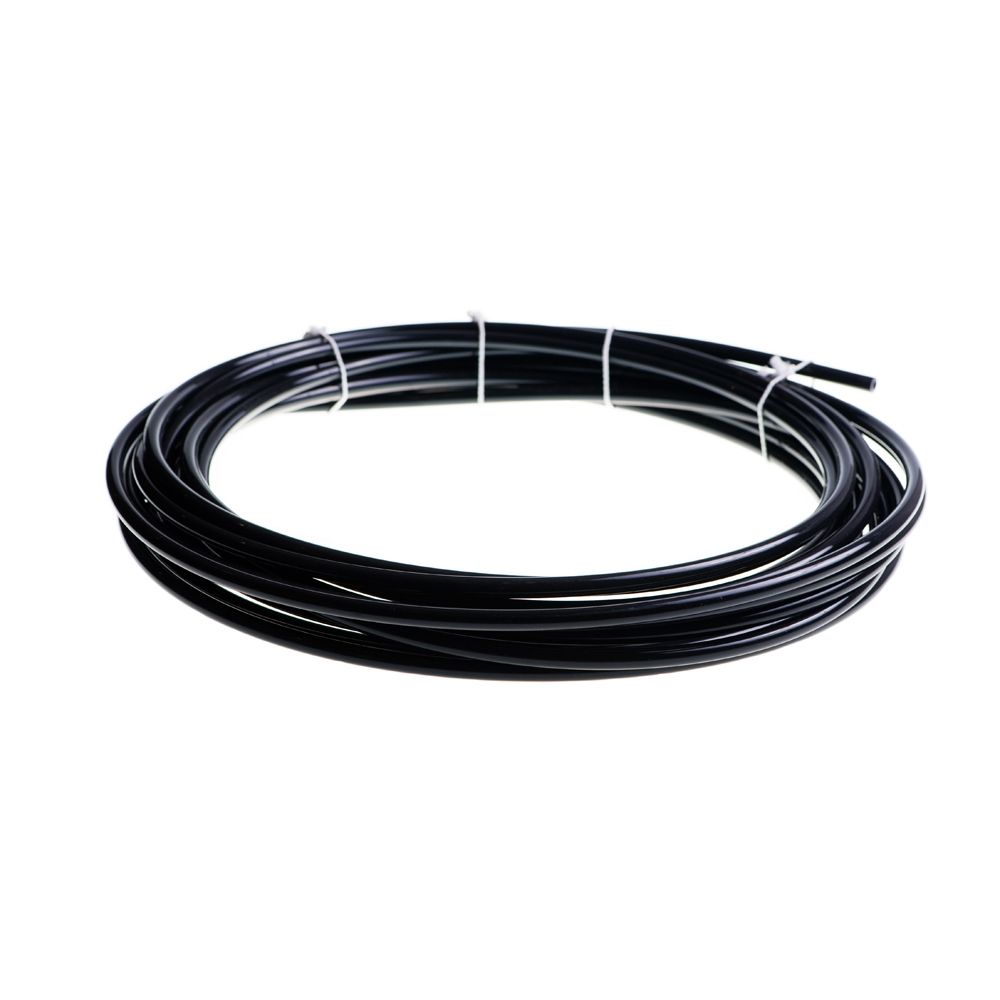

Misting System Tubing
Tubing is the pathway that carries water from the pump to the nozzles, and its quality directly impacts system durability and efficiency.
Advanced Misting Systems offers a wide range of tubing materials, including:
- Nylon and polyethylene (flexible and cost-effective)
- Synflex tubing (designed for higher-pressure systems)
- Copper and stainless steel (durable and corrosion-resistant)
High-pressure systems especially require stronger materials like stainless steel to safely handle increased PSI levels. Proper installation will help ensure consistent pressure and even mist distribution throughout the system.

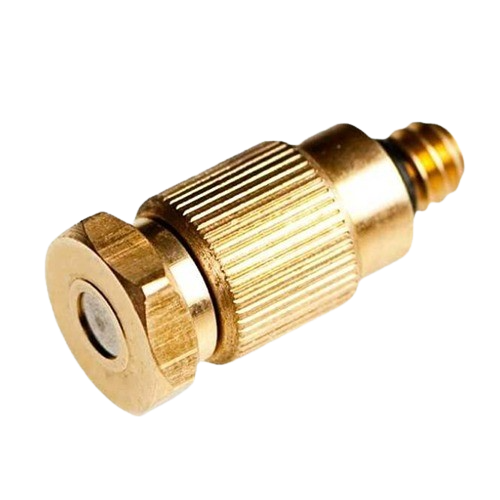

Misting System Nozzles
Nozzles atomize water into fine droplets, releasing them into the open air where they quickly evaporate to produce an ambient cooling effect.
Advanced Misting Systems offers a variety of nozzle types, including:
- Low-pressure and high-pressure nozzles
- Anti-drip nozzles to help prevent dripping after shutdown
- Brass and stainless steel options for durability
Nozzle selection plays a major role in system performance. Smaller orifices and high-pressure compatibility produce a finer mist, which improves evaporation and cooling efficiency. Regular maintenance is also important, as mineral buildup can affect spray quality over time.
Misting System Connectors & Fittings
Fittings and connectors are parts that hold the entire system together. These components ensure that tubing, nozzles, and pumps are securely connected and leak-free.
Advanced Misting Systems provides a wide range of fittings, including:
- Push-lock couplings
- Elbows and tees
- End plugs and nozzle fittings
These components allow for flexible system design, making it easy to customize layouts for patios, commercial properties, or industrial cooling applications. High-quality fittings are especially important in higher-pressure systems to maintain safety and performance.

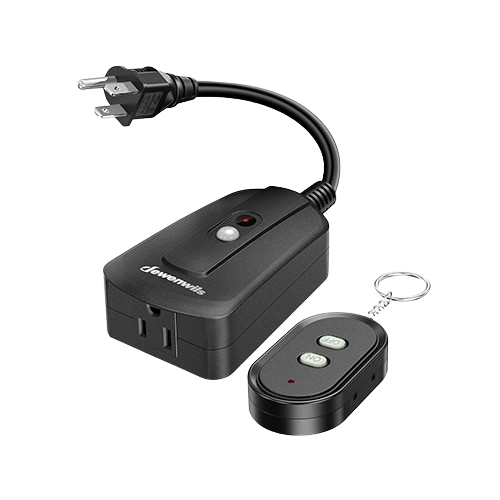

Misting System Controllers
Controllers enhance convenience and efficiency by automating system operation. Rather than manually turning the system on and off, users can rely on timers or switches to control misting intervals.
Advanced Misting Systems offers:
- Timers and programmable remotes
- Switches for manual control
- Integration options for optimized operation
Controllers are especially useful for conserving water and maintaining consistent cooling throughout the day. In commercial or industrial environments, they can help optimize performance while reducing operational effort.
Contact Our Team Today for Expert Guidance
The team at Advanced Misting Systems not only offers high-quality misting systems and parts but also offers expert guidance to address your specific misting needs. Whether you are installing a small patio system or a large-scale commercial cooling setup, our mistingsystem components and experience can help ensure you get a system that performs reliably in real-world conditions.
Reach out to us today to learn more about installing a misting system that delivers powerful, efficient cooling for your space.
