High Pressure Stainless Steel, Hex, Anti-Drip Nozzle 10/24
$8.25
SKU: N/A
Categories: Fogging Parts, Misting Nozzles, Misting System Parts

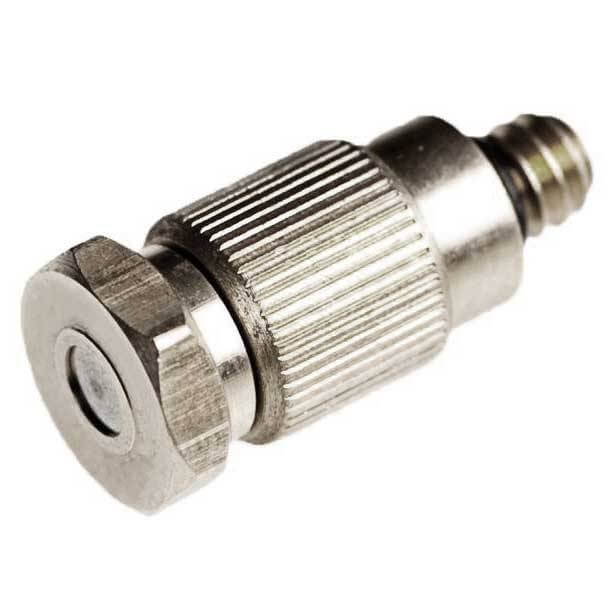

Ultra-fine atomizing stainless nozzles that can be hand tightened and seal with an O-Ring.
This nozzle is designed with a ball and spring to stop the flow of mist once the pump is shut off.

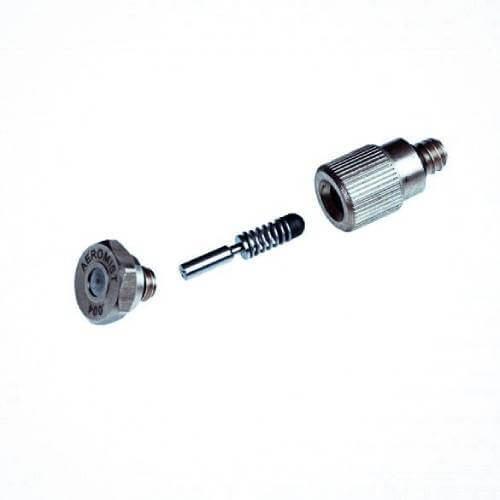

Nozzle can be disassembled for easy cleaning. Hex style with 10/24 nozzle thread.
Nozzle is for high pressure only, 1000 psi. Not suited for pressure below 500 psi.
Two most common sizes for misting application is .008 (humid climate) and .012 (dry climate).
Be the first to review “High Pressure Stainless Steel, Hex, Anti-Drip Nozzle 10/24” Cancel reply
You must be logged in to post a review.
Flow Chart
Orifice Size | Gallons Per Minute |
---|---|
.004 | .008 GPM |
.006 | .013 GPM |
.008 | .020 GPM |
.012 | .028 GPM |
.016 | .040 GPM |
.020 | .050 GPM |
.024 | .056 GPM |
.028 | .064 GPM |
