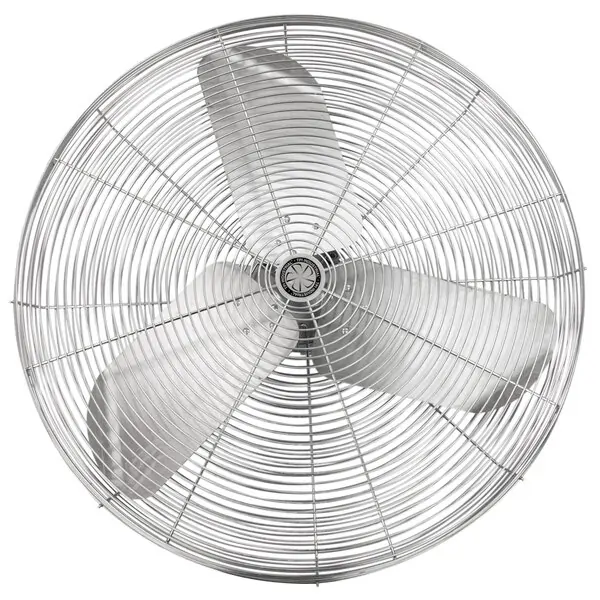

Washdown 20″- 30″ Fan
Starting at: $986.24
Product Description
Product Overview:
This fan is washdown rated with totally enclosed ball bearings for use in wet or moist environments. A no cord-junction box is provided for hard wiring, has 1-speed industrial assembled circulator fan head circulates the air to create a comfortable work environment by cooling down your facility. Made of steel, the fan head provides commercial-grade durability to last for years. It also includes OSHA-compliant coated steel guards, preventing injury from the whirling blades. This standard model can be mounted using a pedestal, wall-mount, I-beam mount, ceiling mount, suspension mount, pole mount or optional wheel kit (all sold separately).
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. Please contact us to confirm, 760-779-1352.
Applications:
Warehouses, schools, offices, horse barns, patios, playgrounds, restaurants, outdoor activities, shop fronts, outdoor bar areas, events, farms, back-of-house foodservice and other large spaces.
20″
| Option | Selection |
|---|---|
| Quantity | 1/Each |
| Shipping Weight | 46 lb. |
| Diameter | 20 Inches |
| Amps | 4.5 Amps |
| Phase | 1 Phase |
| Voltage | 120 – 240 Volts |
| Color | Gray |
| Features | Washdown Rated |
| Horsepower | 1/3 HP |
| Material | Steel |
| Max CFM | 3,200 CFM |
| Min CFM | 3,200 CFM |
| Motor Type | Open Ventilated |
| Plug Type | Hardwire |
| Speeds | 1 |
| Type | Fan Heads |
24″
| Option | Selection |
|---|---|
| Quantity | 1/Each |
| Shipping Weight | 43 lb. |
| Diameter | 24 Inches |
| Amps | 4.5 Amps |
| Phase | 1 Phase |
| Voltage | 120 – 240 Volts |
| Color | Gray |
| Features | Washdown Rated |
| Horsepower | 1/3 HP |
| Material | Steel |
| Max CFM | 4,300 CFM |
| Min CFM | 4,300 CFM |
| Motor Type | Open Ventilated |
| Plug Type | Hardwire |
| Speeds | 1 |
| Type | Fan Heads |
30″
| Option | Selection |
|---|---|
| Quantity | 1/Each |
| Shipping Weight | 52 lb. |
| Diameter | 30 Inches |
| Amps | 4.5 Amps |
| Phase | 1 Phase |
| Voltage | 120 – 240 Volts |
| Color | Gray |
| Features | Washdown Rated |
| Horsepower | 1/3 HP |
| Material | Steel |
| Max CFM | 5,400 CFM |
| Min CFM | 5,400 CFM |
| Motor Type | Open Ventilated |
| Plug Type | Hardwire |
| Speeds | 1 |
| Type | Fan Heads |
Additional Information
| Size | IHP20HWD 20” Washdown Rated Assembled Fan Head 1/3HP 3,200 CFM, IHP24HWD 24” Washdown Rated Assembled Fan Head 1/3 HP 4,300 CFM, IHP30HWD 30” Washdown Rated Assembled Fan Head 1/3 HP 5,400 CFM |
|---|
