18" Wall Mounted, Oscillating Misting Fan kit

18" Wall Mounted, Oscillating Misting Fan kit
SKU
68025-OSC-KIT-BLK
Weight
15.00 lbs
Our price:
$521.92
Select Color
Qty

      Complete Low Pressure 18" Oscillating Misting Fan Kit

68025-OSC-KIT

Durable epoxy corrosion black or white finish Industrial grade aluminum blades Completely sealed, outdoor rated Includes mounting bracket, Stainless steel hardware/all metal construction.

Stainless steel mist hub.

(5) .012 Misting nozzles.

Pre-wired with a 12 FT 115 volt heavy duty cord.

In-line water filter.

18” misting fan is totally enclosed, maintenance free, high efficiency motor has sealed bearings. UL and CUL certification (File# E144918) One Year Warranty.

Our oscillating 18" misting fan has a 5 nozzle hub built right into the grill of the fan! The 5 nozzles help to disperse the water vapor over a wider area of coverage to produce an evaporative mist and cool your area up to 30 degrees F. This fan will make a cool addition to any application..

Wonderful for fly and insect control as well.

Add a misting pump to provide the best atomization and  cooling. See misting pumps page.

FUNCTIONS

Temperature cooling: the instant vaporization of fine water particles absorbs huge amounts of latent heat and achieves rapid cooling.

Environment humidifying: humidity controlling helps reduce static electricity and other uncomfortable environmental conditions.

Agriculture and horticulture: ideal for cooling and humidity control in greenhouses

APPLICATIONS

Horse barns,Patios, restaurants, playgrounds, gardens, fairs, outdoor activities, shop fronts, outdoor bar areas, greenhouse cooling, events, farms, horticulture, factory facility cooling and humidification.

SPECIFICATIONS:

UL 507 Certified
OSHA approved guard.
115 Volt 12 ft. Cord
Amps: 1.13/1.33/1.40
Watts: 112/144/172
3 Speed Motor RPM: 994/1339/1550 Performance: 3120/2650/2016 CCFM

SPEED VOLTS AMPS WATTS RPM CFM
Low 120 1.13 112 994 2010
Med 120 1.33 144 1339 2650
High 120 1.4 172 1550 3120

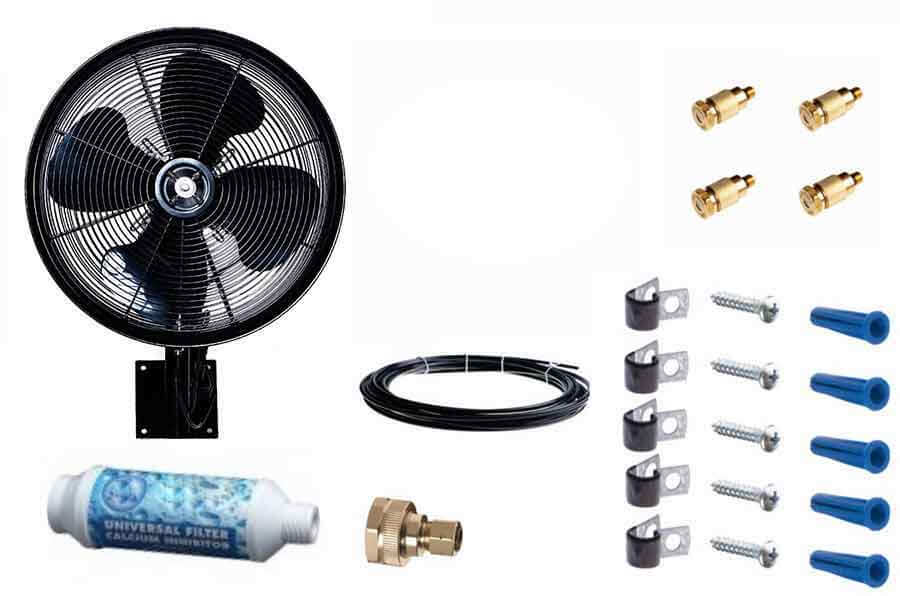

KIT INCLUDES

QTY SKU Description
1 68025 18" Oscillating Fan
5 52603 Plastic Anchor
1 52514 Brass Male Adptr 3/8" x 1/4"
5 51423-SS-LP AD Series Nozzle 012 10/24
1 56402-B Nylon Tubing 25' Roll Black
1 52430-140 Hose  Adaptor 3/8 FGHT X 3/8
1 52505 Calcium Inhibitor water Filter

5 56377 Stainless Steel Clamp
5 52602 Screw
