EVERYTHING YOU NEED FOR LOW PRESSURE PATIO MISTING FAN KIT
24" 68026-Ring Durable epoxy corrosion black or white finish Industrial grade aluminum blades Completely sealed,
Outdoor rated Includes mounting bracket,
Stainless steel hardware/all metal construction
Stainless steel mist hub (5) .012 Misting nozzles,
Pre-wired with a 12 FT 115 volt heavy duty cord and In-line filter. 24” misting fan is totally enclosed..
Maintenance free, high efficiency motor has completley sealed bearings.
UL and CUL certification (File# E144918)
One Year Warranty.
This Fan is a revolutionary oscillating 24" misting fan.
A- 5 nozzle hub is assembled into the center of the fan! The 5 nozzles help to disperse the water vapor over a wider area of coverage to produce an evaporative mist and cool your applacation up to 30 degrees F.
FUNCTIONS
Temperature cooling: the instant vaporization of fine water particles absorbs huge amounts of latent heat and achieves rapid cooling.
Environment humidifying: humidity controlling helps reduce static electricity and other uncomfortable environmental conditions.
Agriculture and horticulture: ideal for cooling and humidity control in greenhouses
APPLICATIONS
Horse barns,Patios, restaurants, playgrounds, gardens, fairs, outdoor activities, shop fronts, outdoor bar, greenhouse cooling, events, farms, horticulture, factory facility cooling and humidification.
SPECIFICATIONS:
UL 507 Certified
OSHA approved guard.
115 Volt 12 ft. Cord
Amps: 1.5/1.6/1.9
3 Speed Motor RPM: 994/1339/1550 Performance: 3120/2650/2016 CCFM
| SPEED | VOLTS | AMPS | RPM | CFM | |
|---|---|---|---|---|---|
| Low | 120 | 1.51 | 895 | 10,575 | |
| Med | 120 | 1.64 | 950 | 13,536 | |
| High | 120 | 1.90 | 1075 | 15,863 |

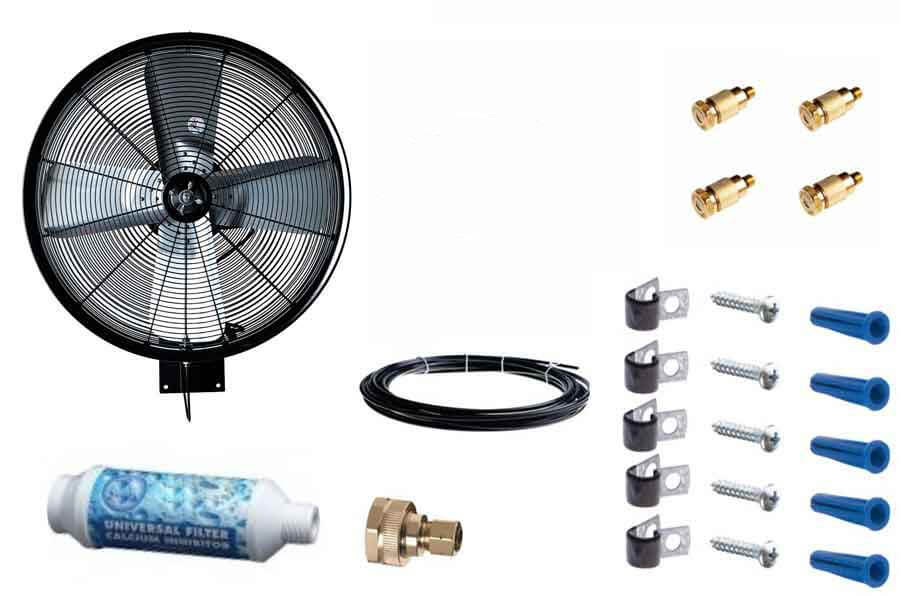

KIT INCLUDES
| QTY | SKU | Description | |||
|---|---|---|---|---|---|
| 1 | 68026 | 24" Oscillating Fan | |||
| 5 | 52602 | Screw | |||
| 1 | 52514 | Brass Male Adptr 3/8" x 1/4" | |||
| 5 | 51423-SS-LP | AD Series Nozzle 012 10/24 | |||
| 1 | 56402-B | Nylon Tubing 25' Roll Black | |||
| 1 | 52430-140 | Hose Adaptor 3/8 FGHT X 3/8 | |||
| 1 | 52505 | Calcium Inhibitor Filter | |||
|
56377 | Stainless Steel Clamp | |||
