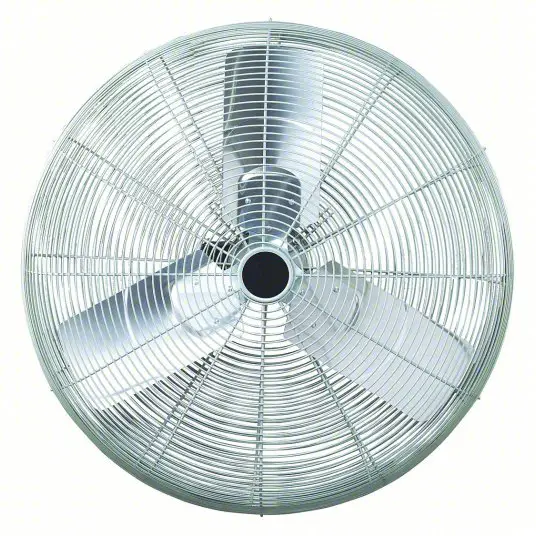

Dayton Standard-Duty Industrial Fan
Starting at: $570.00
Efficient Performance
Available in 24″ or 30″. Oscillating, 2 speeds, Pedestal or IBeam mountable.
Brackets sold separately.
Features:
| item | Air Circulator | |
| Blade Dia. | 24″ or 30″ | |
| Mobile/Stationary | Stationary | |
| Oscillating/Non-Oscillating | Oscillating | |
| Speeds | 2 | |
| Voltage | 115V | |
| Phase | 1 | |
| CFM High | 24″ 6450 30″ 9,800 | |
| CFM Low | 24″ 4500 30″ 8,800 | |
| Cord Length | 10 Foot | |
| Motor HP | 1/2 | |
| Motor RPM | 24″ 1100/850 30″ 1100/850 | |
| Operating Amps | 4.2/3.3 | |
| Mounting Location | Pedestal or IBeam | |
| Fan RPM | 1075/600 | |
| Environmental Applications | Industrial | |
| Assembled | Assembled | |
| Air Velocity (FPM) @ 10 Ft. | 24″ 1000/850 30″ 1250/1070 | |
| Air Velocity (FPM) @ 20 Ft | 24″ 600/500 30″ 760/705 | |
| Air Velocity (FPM) @ 60 Ft. | 24″ 200/120 30″ 300/280 | |
| Sound Level | 24″ 74DBA 30″ 75 DBA | |
| Max. Ambient Temp. | 104 Degrees F | |
| Hz | 60 | |
| Watts | 440/360 | |
| Motor Type | Permanent Split Capacitor | |
| Drive Type | Direct | |
| Motor Enclosure | Totally Enclosed Air-Over | |
| Motor Insulation | Class B | |
| Thermal Protection | Auto | |
| Bearing Type | Ball | |
| Outside Dia. | 24″ 27″ | |
| Height | 24″ 27″ 30″ 33″ | |
| Width | 24″ 27″ 30″33″ | |
| Max. Depth | 24″ 18-1/4″ 30″ 13-9/16″ | |
| Height Adjustment | Fixed Height | |
| Number of Blades | 3 | |
| Blade Material | Mill Finish Aluminum | |
| Shaft Dia. | 1/2″ | |
| Housing Material | Steel | |
| Guard Material | Steel | |
| Wire Guard Finish | Gray Polyester Powder Coat | |
| Application | Spot Cooling and People Cooling | |
| Standards | UL, cUL, OSHA | |
| Includes | Mounting Bolts |
