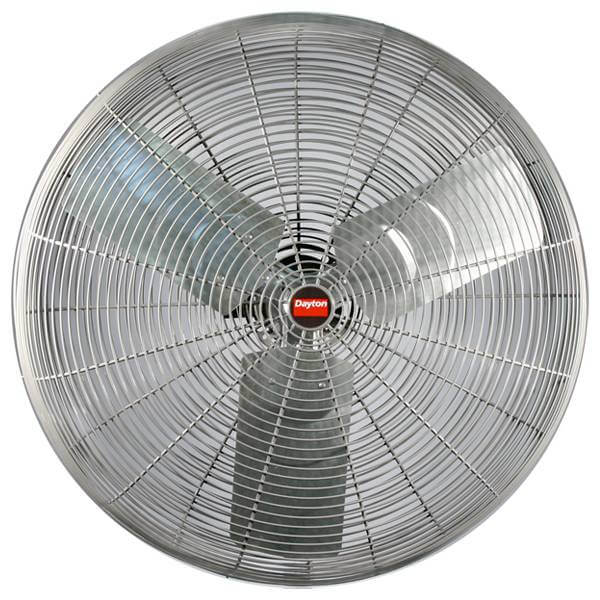

Dayton Standard-Duty Industrial Fan

Starting at: $570.00

Product price
Additional options total:
Order total:
SKU: 1VCF3 Categories: , ,

Efficient Performance

Available in 24″ or 30″.  Oscillating, 2 speeds, Pedestal or IBeam mountable.

Brackets sold separately.

Features:

item Air Circulator
Blade Dia. 24″ or 30″
Mobile/Stationary Stationary
Oscillating/Non-Oscillating Oscillating
Speeds 2
Voltage 115V
Phase 1
CFM High 24″ 6450          30″ 9,800
CFM Low 24″ 4500          30″ 8,800
Cord Length 10 Foot
Motor HP 1/2
Motor RPM 24″ 1100/850    30″ 1100/850
Operating Amps 4.2/3.3
Mounting Location Pedestal or IBeam
Fan RPM 1075/600
Environmental Applications Industrial
Assembled Assembled
Air Velocity (FPM) @ 10 Ft. 24″ 1000/850        30″ 1250/1070
Air Velocity (FPM) @ 20 Ft 24″ 600/500          30″ 760/705
Air Velocity (FPM) @ 60 Ft. 24″ 200/120           30″ 300/280
Sound Level 24″ 74DBA              30″ 75 DBA
Max. Ambient Temp. 104 Degrees F
Hz 60
Watts 440/360
Motor Type Permanent Split Capacitor
Drive Type Direct
Motor Enclosure Totally Enclosed Air-Over
Motor Insulation Class B
Thermal Protection Auto
Bearing Type Ball
Outside Dia. 24″ 27″
Height 24″ 27″            30″ 33″
Width 24″ 27″            30″33″
Max. Depth 24″ 18-1/4″     30″ 13-9/16″
Height Adjustment Fixed Height
Number of Blades 3
Blade Material Mill Finish Aluminum
Shaft Dia. 1/2″
Housing Material Steel
Guard Material Steel
Wire Guard Finish Gray Polyester Powder Coat
Application Spot Cooling and People Cooling
Standards UL, cUL, OSHA
Includes Mounting Bolts
