Air Chiller Industrial Portable Misting Fan | Fan Sizes 24″, 30″ or two 24″

Starting at: $3,290.00

Product price
Additional options total:
Order total:
SKU: N/A Category:

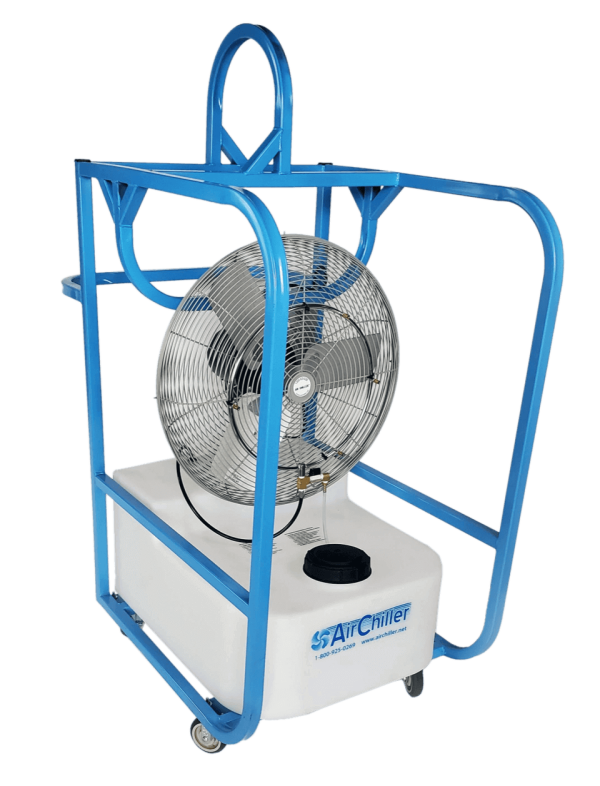

With its aluminum non-sparking blade and hazardous location wiring and motors, these industrial portable misting fans keep you safe and cool. Its added steel roll cage with 4-point lifting protects it from rough, industrial work environments to ensure it will function for years to come.

IND – Added steel roll cage for industrial use

IND-24 (24″ industrial unit) Specs

  • Covered area – 3,000 SF
  • CFM airflow – 10,000 CFM
  • Airflow speed at 5 feet – 21 MPH
  • Fan size – 24″
  • Run time with full tank – 32 gallon tank – 4-5 hours
  • Amp draw – (110 volts) 6.59 amps
  • Circuit breaker size – 15 amps
  • Power supply – 1ph/110 vac/60 hz
  • Size – (H x W x D) 66 x 30 x 46 inches
  • Discharge temp delta – 15-30 degrees (F)
  • Weight (empty) – 150 lbs.
  • Noise level at 10 feet – 68db

IND-30 (30″ industrial unit)

  • Covered area – 3,500-4,500 SF
  • CFM airflow – 15,000 CFM
  • Airflow speed at 5 feet – 25 MPH
  • Fan size – 30″
  • Run time with full tank – 32 gallon tank – 4-5 hours
  • Amp draw – (110 volts) 6.59 amps
  • Circuit breaker size – 15 amps
  • Power supply – 1ph/110 vac/60 hz
  • Size – (H x W x D) 66 x 36 x 49 inches
  • Discharge temp delta – 15-30 degrees (F)
  • Weight (empty) – 150 lbs.
  • Noise level at 10 feet – 68db

IND-24D (Double 24″ industrial unit)

  • Covered area – 2,500 – 3,000 SF
  • CFM airflow – 14,000 CFM
  • Airflow speed at 5 feet – 26 MPH
  • Fan size – (2) 24″
  • Fan motor size – 0.5 HP
  • Tank size – 64 gallons
  • Run time with full tank – 4-5 hours
  • Amp draw (110 volts) – 12.98 amps
  • Circuit breaker size – 20 amps
  • Power supply – 1ph/110 vac/60 hz
  • Size – (H x W x D) 66 x 67.5 x 33.5 inches
  • Discharge temp delta – 15-30 degrees (F)
  • Evaporative zone – 10-15 feet
  • Weight (empty) – 270 lbs.
  • Weight (full) – 804 lbs.
  • Noise level at 10 feet – 68db
