Mobile One Portable Misting Fan System

Product Description

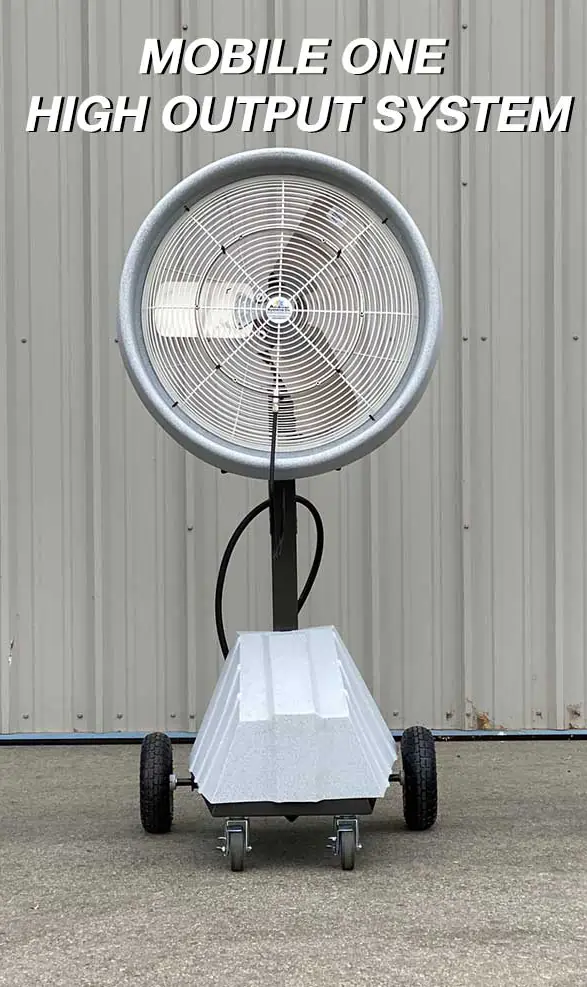

Mobile One Portable Misting Fan System

24 Inch Air Circulator High Output Mobile Misting Oscillating Fan

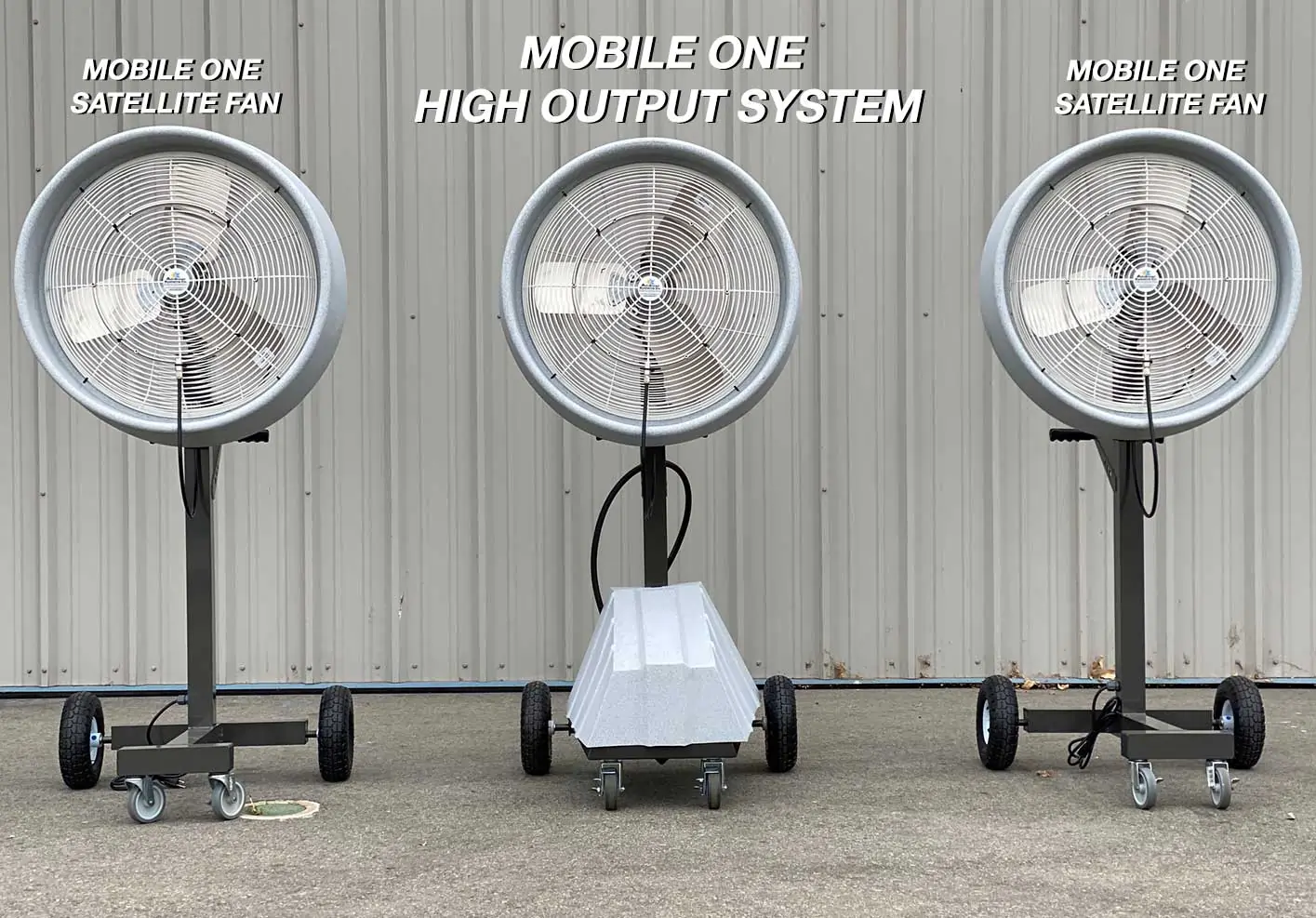

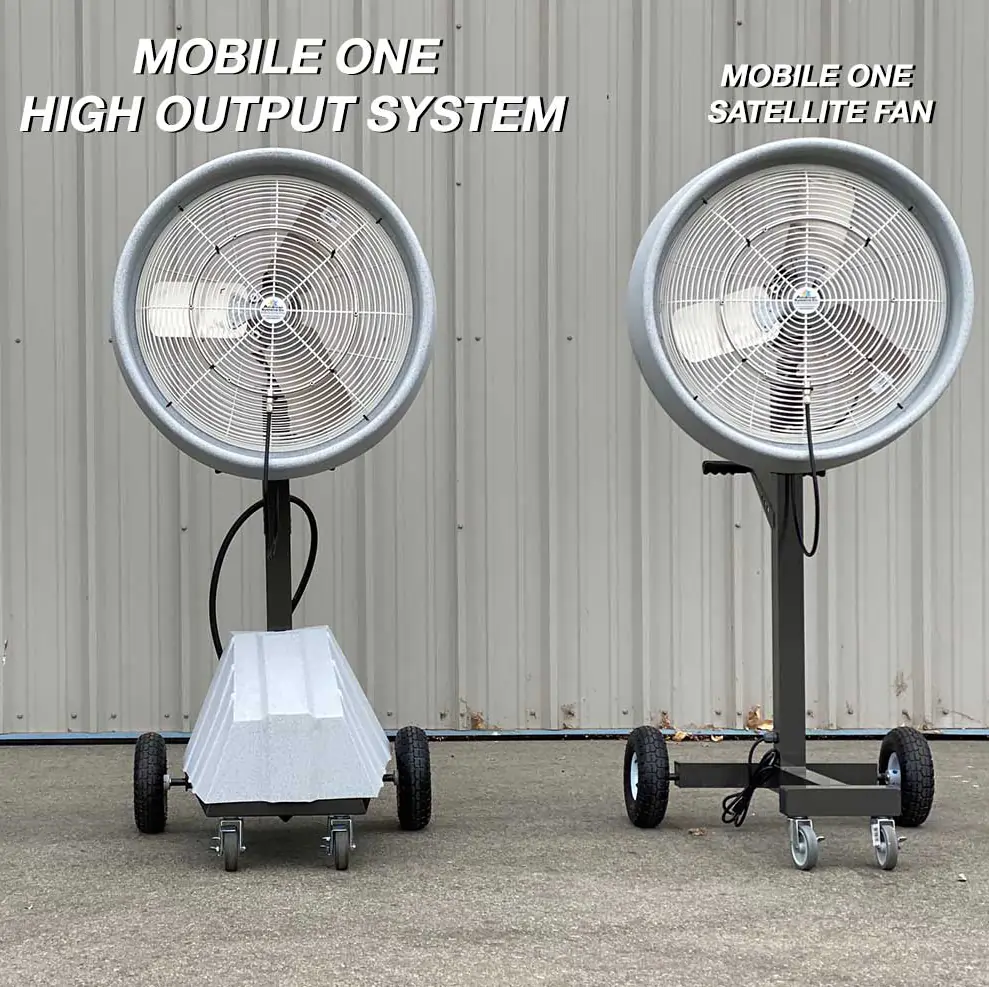

Advanced Misting Systems 24″ oscillating mobile high pressure misting fan system. Fan is equipped with our 1000 PSI mist pump and is capable of running two satellite mist fans*

Single fan oscillates 90 degrees and can cool approximately 60 feet. Fan is equipped with 6 high pressure mist nozzles, two speeds and are Relatively quiet.

This self-contained power misting equipment is engineered with the most reliable components and materials available and is equipped with features to assure ease of mobility, use, and maintenance.

The cool air you will now enjoy when using this misting fan is created through the process of evaporation. Heat is required to change water from the liquid to a gas or “water vapor”. Avanced Systems self-contained power misting equipment creates a “fog” by pumping water at a very low flow rate through fine nozzles. When combined with the air added by a fan, this fog is rapidly evaporated. The heat required to evaporate the fog is extracted from the air causing a reduced air temperature. This misted air is then distributed to people , animals , patios creating a nice cooling effect.

The performance of your misting fan system can be affected by local conditions. For best results, it may be necessary to experiment with the number of nozzles operating to achieve the optimal cooling performance you desire.

The Advanced Systems 24″ Power Mister  cart model fan is an affordable, reliable method for eliminating heat stress by providing portable outdoor cooling. Ideal for sports teams, warehouses, factories, stables, poultry enclosures, hopitality tents, and emergency personnel cooling.

• 1/2 gpm
• CAT Pump

Fan Specs:

• Blade Dia. 24″
• Mobile/Stationary Mobile
• Oscillating/Non-Oscillating Oscillating
• Speeds 2
• Voltage 115V
• Phase 1
• CFM High 6400
• CFM Low 4460
• Air Velocity (FPM) @ 20 Ft. 410/325
• Motor HP 1/2
• Motor RPM 1075/750
• Operating Amps 4.7/3.3
• Fan RPM 1075/600
• Environmental Applications Industrial
• Assembled Assembled
• Air Velocity (FPM) @ 10 Ft. 1020/710
• Air Velocity (FPM) @ 40 Ft 185/145
• Air Velocity (FPM) @ 60 Ft. 80/60
• Sound Level 74dBA
• Max. Ambient Temp. 104 Degrees
• F Hz 60 Watts 429/353
• Motor Type Permanent Split Capacitor
• Drive Type Direct
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Thermal Protection Auto
• Bearing Type Ball
• Outside Dia. 27″ Height 27″ Width 27″ Max. Depth 16-3/4″
• Cord Length 10 ft.
•  Number of Blades 3
• Blade Material Mill Finish Aluminum
• Shaft Dia. 1/2″
• Housing Material Steel
• Guard Material Steel
• Wire Guard Finish Gray Polyester Powder Coat
• Application Spot Cooling and People Cooling
• Standards UL, cUL, OSHA

Polyurethane Shroud, Custom colors avalable

* Satellite misting fans sold separately
