Mid Pressure Misting System (300 psi) - Stainless Steel

Mid Pressure Misting System (300 psi) - Stainless Steel
SKU
10416-SS
Our price:
$1070.00
Length
Installation Climate
Powder Coat
Qty

A mid pressure misting system from Advanced Misting Systems can cool your residential  outdoor area by 15 degrees. The biggest advantage over a low pressure system (150 psi) is that the mid pressure (300 psi) pump produces a water droplet that is much smaller, which in turn means the evaporation happens faster -- and this equals a lower temperature drop overall.

Our mid pressure misting systems are premium quality and include all the parts and fittings needed for installation (see full parts lists below). Our 300 psi misting kits are designed for easy installation, the average DIYer should have no problems with installation.

WHAT LENGTH DO I NEED?

A big advantage of buying from Advanced Misting Systems is our experience, owner Mike has 20+ years experience with misting systems - if you have any questions don't hesitate to call us at 760-779-1352. The steps listed below should be enough information for you to make the necessary choices to configure and purchase your mid pressure misting system.

MEASURE LENGTH

Measure the outside perimeter of the area you want to cool with a misting system. And then measure the distance from the area you want to cool, to your water/electrical source. Take the outside perimeter measurement and add the measurement to your water/electrical source, and then add roughly 10% for good measure - this total would be the length you will need to select.

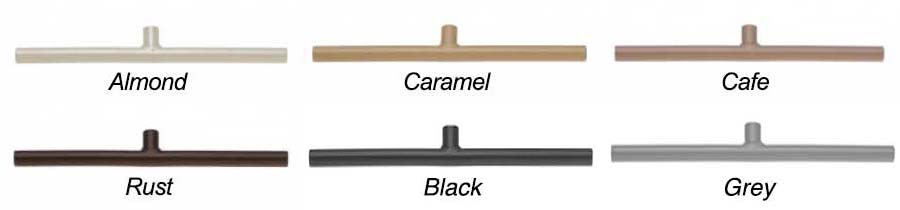

STAINLESS STEEL COLOR OPTIONS

The powder coating color options are available for stainless steel only. There are 7 powder coated color options: Almond (off-white), Caramel (light brown), Cafe (medium brown), Rust (dark brown/red), Black, Grey and White

Tubing and clamps will be powder coated to the chosen color. 12 OZ touch up paint spray can is available (Item 51008) to paint other fittings such as; elbows, unions and end cap.

When installing powder coated tubing you may need to remove approximately 1 1/2" of the paint before tightening the stainless steel compression fitting onto the tube.

Stainless Misting System Almond Color Misting System Caramel Color Misting System Cafe Color Misting System Rust Color Misting System Black Color Misting System Grey Color Misting System

The color options are an additional cost - when you choose from the Stainless Color option above, the price will automatically be adjusted.

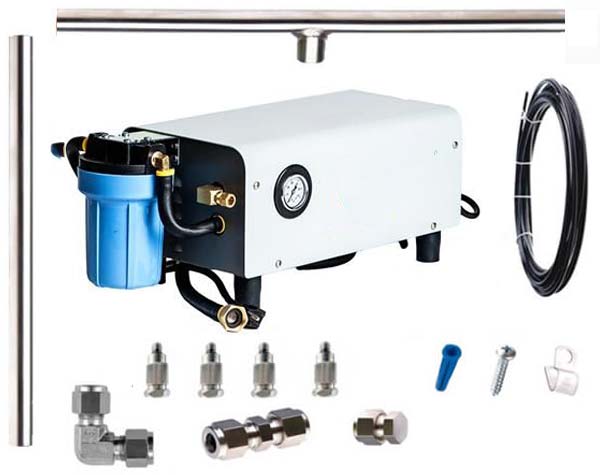

WHAT PARTS ARE INCLUDED?

All of our mid pressure misting kits come with a 300PSI enclosed misting pump, 50 feet of nylon manifold line, 3 elbows and 1 anchor kit. All other parts will depend on the length and tubing type, see below for specific parts list for our stainless steel kit.

Stainless Steel Tube Misting Kits - Parts List
Length    8ft Stainless Tube    Mist Nozzles   Stainless Steel Unions   Stainless End Caps   8ft Blank Tube   Clamps
16 2 Sections 8 3 1 1 25
24 3 Sections 12 3 1 1 25
32 4 Sections 16 4 1 1 25
40 5 Sections 20 5 1 1 30
48 6 Sections 24 6 1 1 35
56 7 Sections 28 7 1 1 35
64 8 Sections 32 8 1 1 45
72 9 Sections 36 9 1 1 45
