Mid Pressure Misting System (300 psi) – Nylon
Starting at: $1,269.00
Product Description
A mid pressure misting system from Advanced Misting Systems can cool your residential outdoor area by 15 degrees. The biggest advantage over a low pressure system (150 psi) is that the mid pressure (300 psi) pump produces a water droplet that is much smaller, which in turn means the evaporation happens faster — and this equals a lower temperature drop overall.
Our mid pressure misting systems are premium quality and include all the parts and fittings needed for installation (see full parts lists below). Our 300 psi misting kits are designed for easy installation, the average DIYer should have no problems with installation.
WHAT LENGTH DO I NEED?
A big advantage of buying from Advanced Misting Systems is our experience, owner Mike has 20+ years experience with misting systems – if you have any questions don’t hesitate to call us at 760-779-1352. The steps listed below should be enough information for you to make the necessary choices to configure and purchase your mid pressure misting system.
MEASURE LENGTH
Measure the outside perimeter of the area you want to cool with a misting system. And then measure the distance from the area you want to cool, to your water/electrical source. Take the outside perimeter measurement and add the measurement to your water/electrical source, and then add roughly 10% for good measure – this total would be the length you will need to select.
Additional Information
| Length | 66, 58, 72, 70, 73, 63, 74 |
|---|
WHAT PARTS ARE INCLUDED?

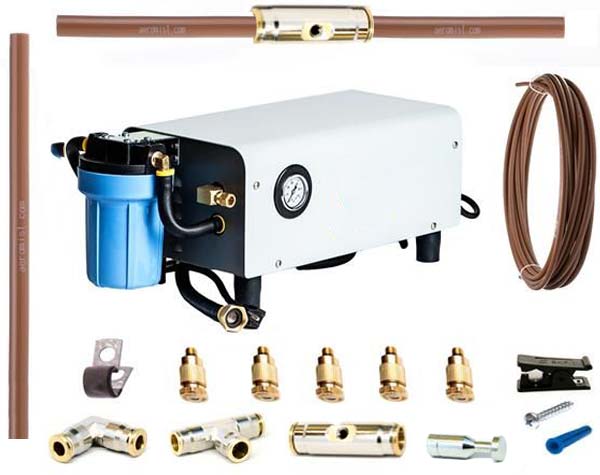

All of our mid pressure misting kits come with a 300PSI enclosed misting pump, 50 feet of nylon manifold line, 3 elbows and 1 anchor kit. All other parts will depend on the length and tubing type, see below for specific parts list for our nylon tubing kits.
| Length | 2ft Nylon Lines | Misting Nozzles | Push Lock Unions | Push Lock End Plugs | Push Lock Elbows | Push Lock Tees | Clamps | 50ft Nylon Tube Roll |
|---|---|---|---|---|---|---|---|---|
| 30 | 14 | 15 | 15 | 2 | 3 | 1 | 25 | 1 |
| 40 | 19 | 20 | 20 | 2 | 3 | 1 | 30 | 1 |
| 50 | 24 | 25 | 25 | 2 | 3 | 1 | 35 | 1 |
| 60 | 29 | 30 | 30 | 2 | 3 | 1 | 40 | 1 |
| 70 | 34 | 35 | 35 | 2 | 3 | 1 | 45 | 1 |
| 80 | 39 | 40 | 40 | 2 | 3 | 1 | 50 | 1 |
| 90 | 44 | 45 | 45 | 2 | 3 | 1 | 55 | 1 |
