1000 PSI Enclosed Direct Drive Pumps
Starting at: $1,999.00
Product Description

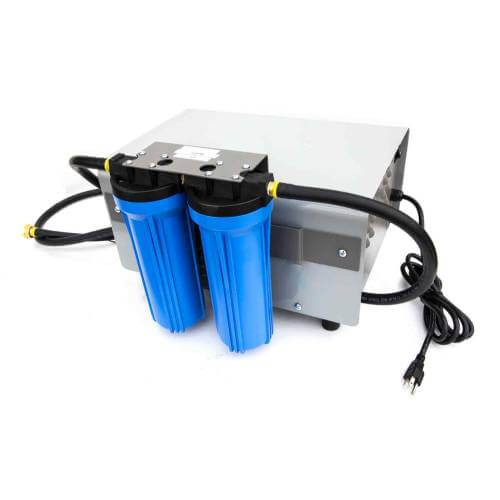

Our Advanced Misting Enclosed Direct Drive Pumps are designed to operate at 1000 PSI. The 120V pumps have a standard plug for your standard outlet and garden hose adapter to fit your outdoor spigot for the water supply. We use a 3/8″ compression fitting on the outlet of the pump to attach to high pressure nylon tubing.
Our Enclosed Direct Drive Pump are outdoor rated and weather resistant with built in sound deafening foam. This pump needs to be set on a level surface because it is filled with oil. All components are sealed and waterproof. Our pumps are assembled with a normally closed solenoid valve to stop the water flowing through the unit when pump is turned off. We use a 5 micron sediment filter in addition to our NEW Ecosmart Scale Filter.
Our pumps .33 GPM to 2.1 GPM include a low-pressure switch kit which protects your pump from damage if the water supply accidentally gets turned off. The switch prevents the pump from turning on which saves the pump from over-heating and damaging the internal seals. This feature is not available for pumps higher than a 2.1 GPM.
Please see below our nozzle chart so you can correctly identify which pump that may fit your needs. (Please note your pump must be sized by how many nozzles you are running and the orifice size of the nozzle. Running under or over the minimum nozzle requirement may damage your pump.)
Please contact us if you would like help finding the pump that best fits your needs, [email protected] or 760-779-1352.
Instruction Manual copy (1000 PSI Totally Enclosed Direct Drive) is located under the Documents tab located at top right of our website Home page.
Please note: Our pump units require maintenance about every 500 hours. We do have maintenance kits available that can be found under Misting System Parts/Misting Maintenance.

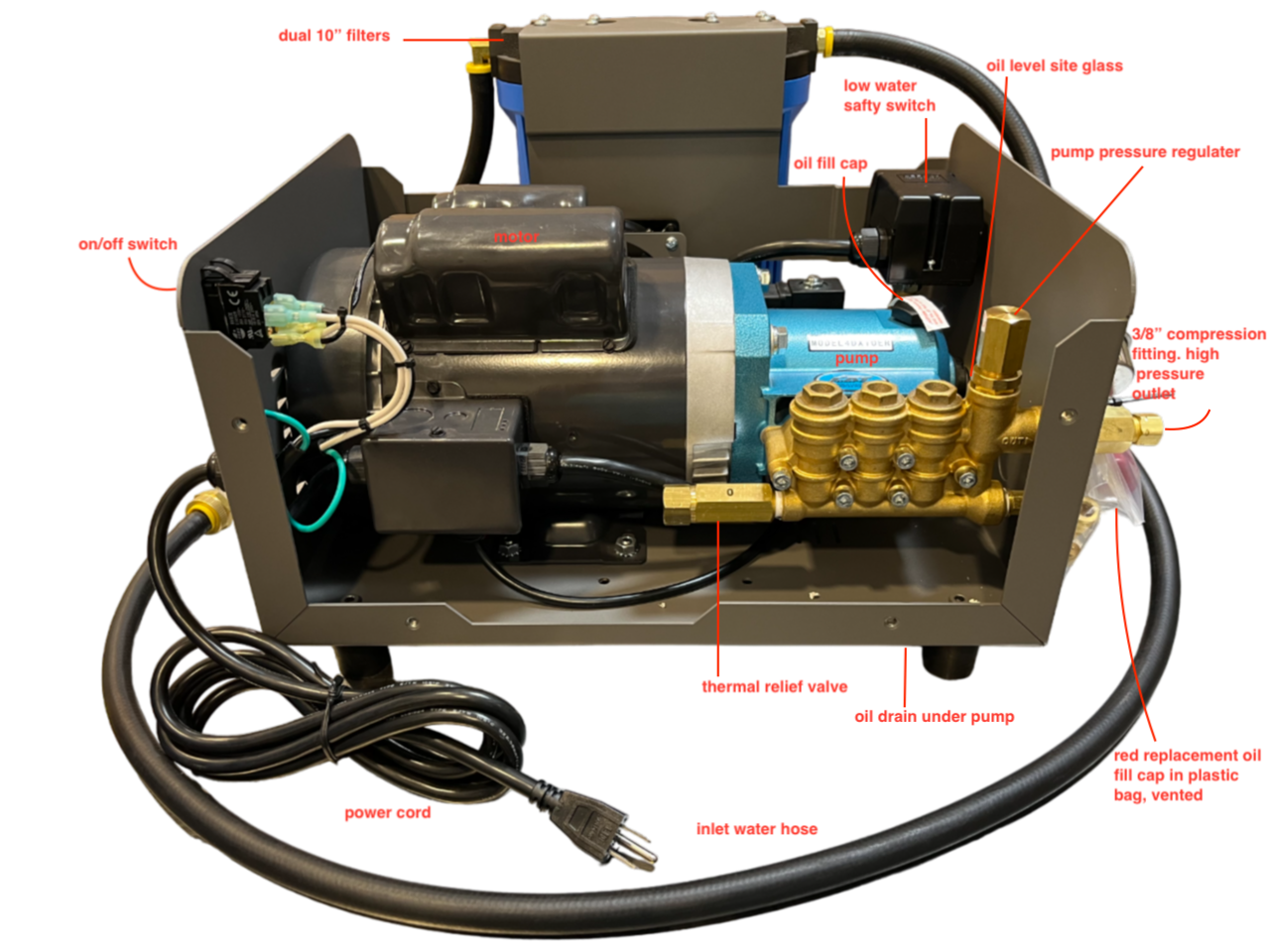

Features of these Pump Units:
- Dimensions: L 23.5″ x W 13.5″ x H 11″
- Rubber Mounted Motors
- HD CAT Pumps
- Totally enclosed fan cooled motors with overload protection
- Inlet water On/Off automatic soleniod
- Dual filtration sediment and eco-smart scale filter
- 11-gauge pump platforms with powder coat finish
- HD power switch
- 4 foot power cord
- 3 foot inlet water hose with STD 3/4″ water fitting
- Low water pressure safety switch
- Thermo relief valve for pump cooling
- Drain Valve Kit
Optional:
- Wifi controllers
- Hand held remote control
- Thermostats
- Humidistats
- Time clock controllers
- 24 Volt controllers
- Pump service kits – oil, filters and tools
” WE ARE THE COMPETITION “
Additional Information
| Choose Pump Model (120V Standard, 220V Upon Request) | .33 GPM - 120 Volt, .5 GPM - 120 Volt, 1 GPM - 120 Volt, 1.5 GPM - 120 Volt, 2.1 GPM – 120 Volt, 2.9 GPM - 120 Volt |
|---|
Pump Nozzle Sizing Chart
| GPM | .004 Misting Nozzles | .006 Misting Nozzles | .008 Misting Nozzles | .012 Misting Nozzles | .016 Misting Nozzles | Voltage | Amps | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| .33 GPM | 20-40 | 13-26 | 8-15 | 5-10 | 4-8 | 120 Volt 60Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
| .5 GPM | 30-60 | 20-40 | 13-25 | 9-18 | 6-13 | 120 Volt 60 Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
| 1 GPM | 60-120 | 40-80 | 25-50 | 18-36 | 12-25 | 120 Volt 60 Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
| 1.5 GPM | 94-188 | 58-116 | 37-75 | 26-53 | 19-38 | 120 Volt 60 Hz | 14 Amps | 55 lbs | L 24" W 11" H 13" |
| 2.1 GPM | 125-245 | 80-160 | 50-100 | 36-72 | 25-50 | 230 Volt 60 Hz | 8 Amps | 125 lbs | L 18" W 16" H 13" |
| 3.0 GPM | 188-376 | 116-232 | 75-150 | 53-106 | 38-76 | 230 Volt 60 Hz | 8 Amps | 125 lbs | L 26" W 16" H 13" |
