Home :: Misting Pumps :: Quiet Pulley Driven Misting Pump 0.5, 1.0, 1.5, 2.0 or 4 GPM

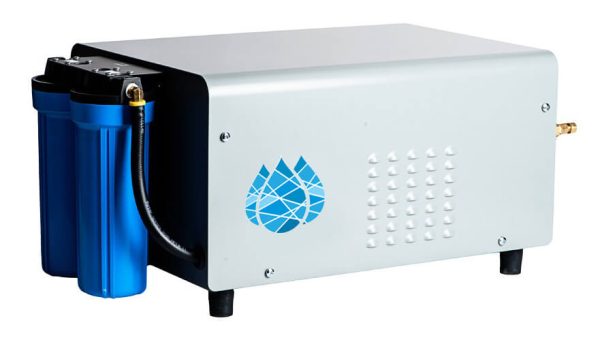

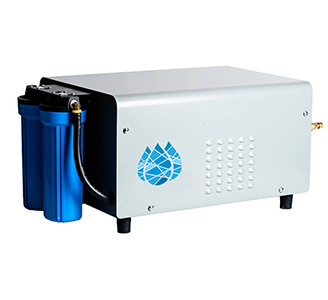

Quiet Pulley Driven Misting Pump 0.5, 1.0, 1.5, 2.0 or 4 GPM

Quiet Pulley Driven Misting Pump 0.5, 1.0, 1.5,  2.0 or 4 GPM
100.00 lbs
Our price:
Gallons Per Minute
Dual Filter Add On
Low Pressure Switch

Advanced misting pumps are designed to operate at 1000 psi. The 120V pumps have a standard plug for your home outlet and garden hose adapter to fit your outdoor spigot for the water supply. We use a 3/8" compression fitting on the outlet of the pump to attach to high pressure nylon tubing.  220V pumps available.

Our pulley pumps are our quietest 1000 psi pump units.  As the name suggests, the enclosed water pump pulley produces the pressure using a pulley belt attached from the pump to the motor which runs at 1450 rpm. All of our pulley pumps are equipped with a dual filter system to help eliminate clogged nozzles from sediment.

Pully Drive systems are built for quite use. Pumps only spin at 700 rpm, Slow and quite operation Plus will run forever at that speed

Our pump units require maintenance about every 500 hrs or once a year for most systems.

Oil change and filter replacment. See part numbers below.


TEFC Electric Motor (Item # 31041), Glycerin Filled Pressure Gauge (Item # 57251), Adjustable Regulator, Solenoid (Item # 30375)

One 10" Filter Element 1 Micron (Item # 57006)

One 10" Filter Element 5 Micron (Item # 57011)

Replacement CAT pump oil (Item # 57025)

Benefits of Scale X Filter option
The Scale X filter effectively inhibits the formation of calcium-carbonate scale to keep your nozzles cleaner longer. Add a Scale X filter to your pump; minimize nozzle maintenance; enjoy your misting system hassle free.

Benefits of Low Pressure Switch option.

The low pressure switch protects your 1000 psi pump from damage if the water supply is accidentally turned off. The switch prevents the pump from turning on which saves the pump from over-heating and damaging the internal seals. Available for use with pumps speeds up to 2gpm.

All Pumps are 120 Volt 60Hz

GPM   .008 Misting Nozzles    .012 Misting Nozzles Amps    Voltage     Weight    Dimensions
.5 GPM     10-25   7-18 12.0   120 100 lbs L 31"  W 16" x H 13"
1 GPM  25-50  17-36 12.0   120 100 lbs L 31.5"  W 16.5"  H 13"
1.5 GPM  30-75  21-54 13.5   120 100 lbs L 31.5" W 16.5" H 13"
2 GPM  40-100  28-72 14   120 100 lbs L 31.5" W 16.5"  H 13"
4 GPM  80-200  56-145 23  230   L 40" W 22"  H 17"
