1000 PSI Direct Drive Open Base Mount
Starting at: $1,499.00
Our Advanced Misting direct drive pumps are designed to operate at 1000 PSI. The 120V pumps have a standard plug for your standard outlet and garden hose adapter to fit your outdoor spigot for the water supply. We use a 3/8″ compression fitting on the outlet of the pump to attach to high pressure nylon tubing. 230V pumps available in drop down.

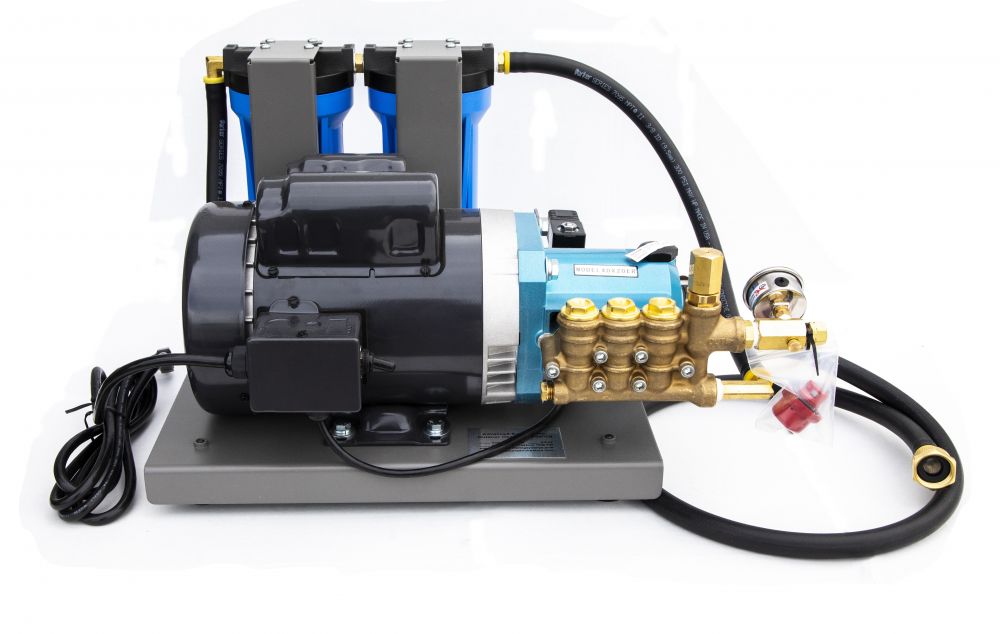

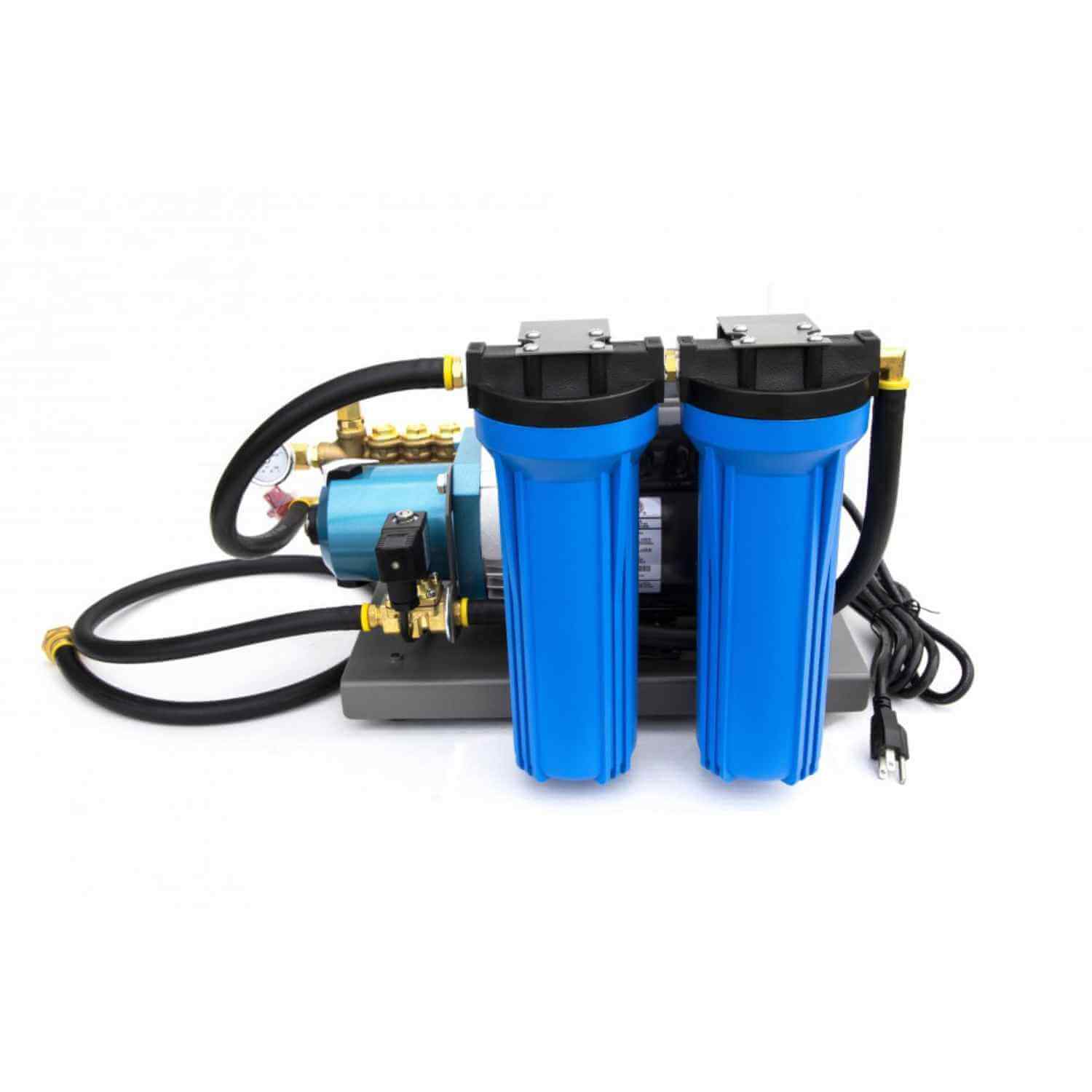

Our open direct drive pump is our most popular unit. This pump is designed on an open base that needs to be set on a level surface because it is filled with oil. All components are sealed and waterproof. Our pumps are assembled with a normally closed solenoid valve to stop the water flowing through the unit when pump is turned off. Our 5 and 10 micron sediment filters also come standard on this pump.
Our pumps .33 GPM to 2.1 GPM include a low-pressure switch kit which protects your pump from damage if the water supply accidentally gets turned off. The switch prevents the pump from turning on which saves the pump from over-heating and damaging the internal seals. This feature is not available for pumps higher than a 2.1 GPM.
Please contact us if you would like help finding the pump that best fits your needs, [email protected] or 760-779-1352.
Instruction Manual copy (Direct Drive: Base Mount Open Model) is located under the Documents tab located at top right of our website page.
Our pump units require maintenance about every 500 hours or once a year for most systems.
Oil change and filter replacement. See part numbers below.

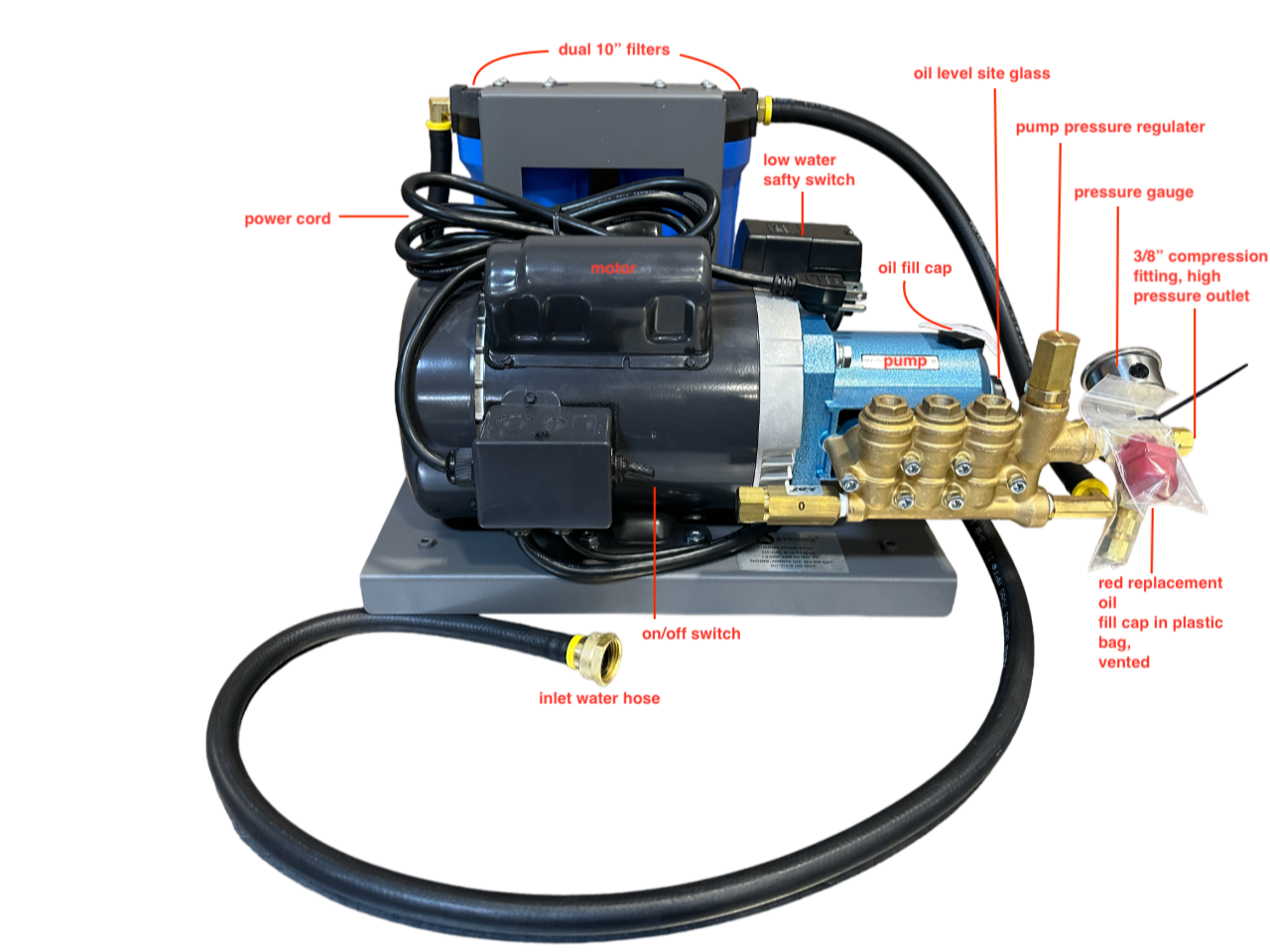

Features of this pump system:
Weight and Dimensions: 65lbs; 24″L 15″W 13″H
TEFC Electric Motor (Item #: 31041)
Glycerin Filled Pressure Gauge (Item #: 57251)
Adjustable Regulator, Solenoid (Item #: 30375)
One 10″ Filter Element 1 Micron (Item # 57006) and one 10″ Filter Element 5 Micron (Item # 57011)
Replacement CAT Pump Oil (Item # 57025)
Benefits of Scale X Filter option
The Scale X filter effectively inhibits the formation of calcium-carbonate scale to keep your nozzles cleaner longer. Add a Scale X filter to your pump; minimize nozzle maintenance; enjoy your misting system hassle free.
You must be logged in to post a review.
Specs
GPM | .004 Misting Nozzles | .006 Misting Nozzles | .008 Misting Nozzles | .012 Misting Nozzles | .016 Misting Nozzles | Voltage | Amps | Weight | Dimensions |
---|---|---|---|---|---|---|---|---|---|
.33 GPM | 20-40 | 13-26 | 8-15 | 5-10 | 4-8 | 120 Volt 60Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
.5 GPM | 30-60 | 20-40 | 13-25 | 9-18 | 6-13 | 120 Volt 60Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
1 GPM | 60-120 | 40-80 | 25-50 | 18-36 | 12-25 | 120 Volt 60Hz | 8.4 Amps | 65 lbs | L 24" W 11" H 13" |
1.5 GPM | 94-188 | 58-116 | 37-75 | 26-53 | 19-38 | 120 Volt 60Hz | 14 Amps | 55 lb | L 24" W 11" H 13" |
2.1 GPM | 125-245 | 80-160 | 50-100 | 36-72 | 25-50 | 230 Volt 60 Hz | 8 Amps | 125 lb | L 18" W 16" H 13" |
3.0 GPM | 188-376 | 116-32 | 75-150 | 53-106 | 38-76 | 220 Volt 60 Hz | 8 Amps | 125 lb | L 26" W 16" H 13" |
