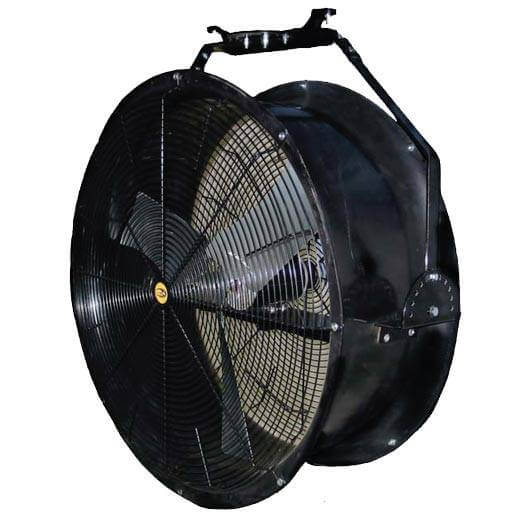

Poly Chiller Drum Fan

Starting at: $809.00

Product price
Additional options total:
Order total:
SKU: VPRF24 Category:

Product Description

J&D Manufacturing’s specialized team of ventilation engineers have created the MOST efficient venturi in the world ever designed for a recirculation fan. The one piece polyethylene housing is formed into a unique shape that actually helps draw The Poly Chiller? air out of the venturi, throwing air further and reducing the load on the motor and blade by up to 15%. This allows us to increase the pitch and performance without overloading the motor. The smooth shape of the venturi is extremely easy to clean with no corners for bacteria or dirt to build?up in. The motor and blade are supported by a heavy duty mount which is directly attached to the multi adjustment bracket. This means the poly housing is not part of the support structure avoiding venturi distortion like other poly housing fans. Our bracket allows you to tilt and lock the fan angle on the sides along with the ceiling multi-positioning bracket. The Poly Chiller comes standard with a unique OSHA guard which is designed to create less restriction and is spaced wide enough to resist dirt built?up.

Gold medal performance in air movement, efficiency usage, versatility, corrosion resistant, safety and easy to clean. Once again J&D Manufacturing has set a new standard and we are blowing the competition away!

When it comes to transferring electrical energy efficiently into air energy for cooling, air recirculation or air movement, J&D Manufacturing is the world leader.

J&D Manufacturing re-circulation fans when applied properly can be used in the following applications:

  • Air de-stratification can help reduce heating and cooling bills by up to 25%
  • Air exchange when placed in a wall opening or in open sidewall buildings
  • Consistent air temperature throughout a room or building
  • Heat stress relief indoors and outdoors for young and old
  • Surface drying (including animal bedding)
  • People and animal cooling
  • Machine/compressor cooling
  • High velocity air cooling
  • Insect control
  • Air curtains

Features:

  • GOLD MEDAL PERFORMANCE of 14,300 CCFM with 1/2 hp motor, 23.8 CCFM per WATT, creates an air pattern that is unequaled in today?s market
  • Three winged galvanized blade
  • Fan and guards come completely assembled.
  • OSHA approved guard for installations below and above 7 feet
  • One piece polyethylene housing with UV inhibitors, no rust, easy to clean with no corners for bacteria or dirt to build up in.
  • Heavy duty powder coated, corrosion resistant, multiposition support bracket, motor mount and guard.
  • Totally enclosed, maintenance free, direct drive high efficiency motors have completely sealed ball bearings, UL and ULC certification, built in automatic thermal overload protection, covered by a Full Two-Year Warranty.

Additional Information

Choose Model

24" Poly Chiller DD 115/230V 1/2HP 1PH 1SP W/Brkt W/Out Cord, 36" Poly Chiller DD 115/230V 1/2HP 1PH 1SP W/Brkt W/Out Cord, 24" Poly Chiller DD 115V 1/2HP 1PH 1SP W/Brkt W/10' Cord, 36" Poly Chiller DD 115V 1/2HP 1PH 1SP W/Brkt W/10' Cord
