Advanced Mist 35 High Pressure Enclosed Quiet Misting Pump (With Pre-Programmed Mist Time Settings)

Product Description

Pump Manual

Our Advanced Mist units are designed for medium duty misting with quiet operation and durability. When you have to install your misting pump close to your misting area this is the pump unit you want for high pressure misting, 1000PSI. Pump comes ready to go with filter, oil and standard hose hook-up fitting.  It also comes with 3/8 high pressure nylon hose compression fitting to easily connect to your system.

Pump nozzle range running .008 orifice size minimum 4 – 16 max @ 1000 PSI

Simple installation for the DIY person and durable operation.

• One Year limited warranty
• Free Shipping to all 48 States
• Any questions please feel free to call us, 760-779-1352

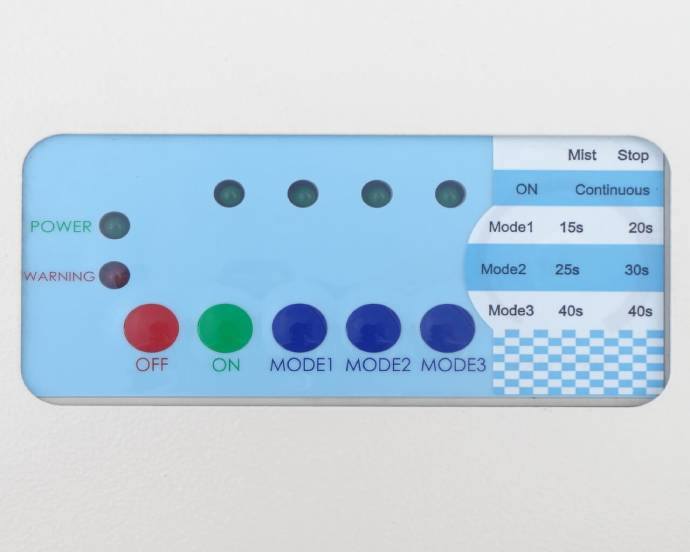

Four preset misting cycles for changes in humidity and to conserve water:

• Press On: Continuous mist
• Mode 1: Intermittent Misting 15 Seconds On, 20 Seconds Off – Repeat
• Mode 2: Intermittent Misting 25 Seconds On, 30 Seconds Off – Repeat
• Mode 3: Intermittent Misting 40 Seconds On, 40 Seconds Off – Repeat
• Off: System Off

Single filtration. Splash resistant. LED mode indicators.

Features:

• 1000 PSI operation
• 120 Volt, 60 hz
• 48 decibel operation
• Simple On/Off
• 5″ 5 micron filter
• Pressure gauge
• Thermo reset button
• 5 foot power cord with plug
• Water shut off valve
• Auto drain valve
• Low pressure safety shut down switch
• Rubber mounted motor
• 3 piston direct drive pump unit
• Remote not included, On/Off directly on pump unit

Specifications:

• 1/3 hp, 120 Volt motor
• .33 GPM pump unit
• Pump nozzle range running .008 orifice size minimum 4 – 16 max @ 1000 PSI
• 4.4 Running Amps
• 3/4 Hose water inlet
• 3/8″ Push lock fitting to connect to mist line or water feed 3/8″ nylon tubing
• Will need a dedicated water source and regular 120 V outlet for plug
• Dimensions: 21″x12″x11″
• Weight 41 Lbs
