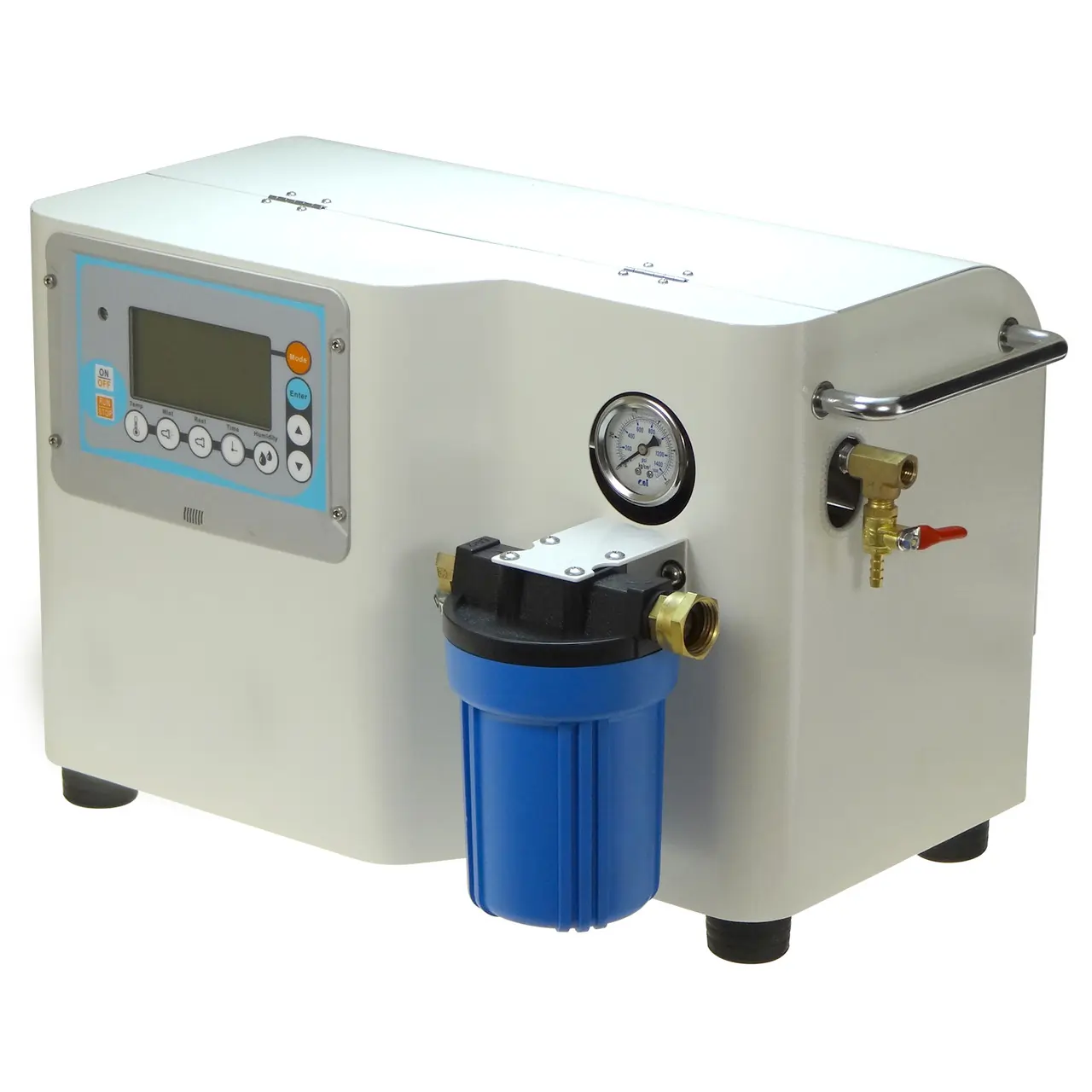

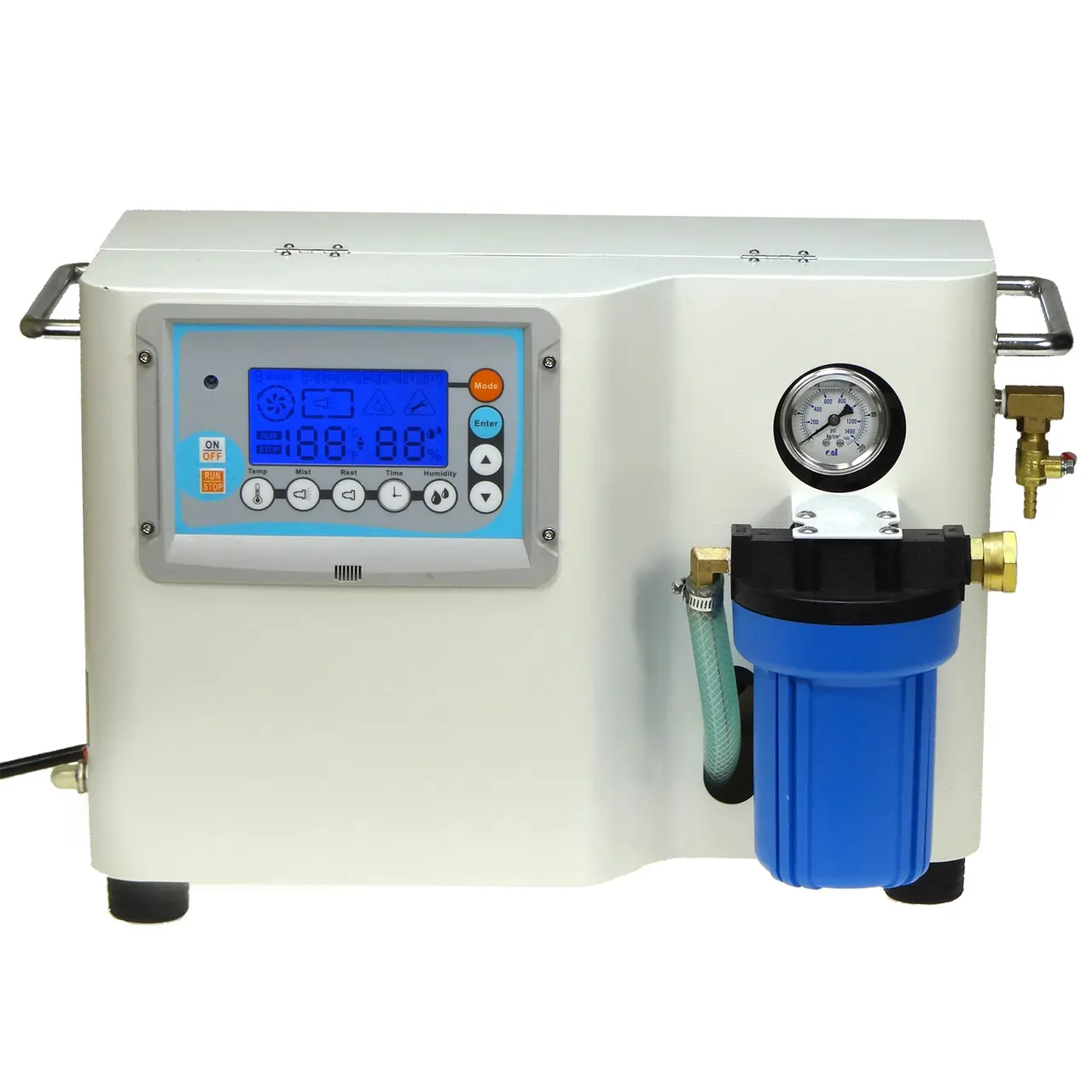

Pro Mist 100 High Pressure Enclosed Quiet Misting Pump (With Pre-Programmed Mist Time Settings)

Product Description

Our Pro Mist units are designed for medium duty misting with quiet operation and durability. When you have to install your misting pump close to your misting area this is the pump unit you want for high pressure misting, 1000PSI. Pump comes ready to go with filter, oil and standard hose hook-up fitting.  It also comes with 3/8 high pressure nylon hose compression fitting to easily connect to your system.

Simple installation for the DIY person and durable operation.

• One Year limited warranty
• Free Shipping to all 48 States
• Any questions please feel free to call us, 760-779-1352

Six preset misting cycles for changes in humidity and to conserve water:

• Mode 1: 15 Seconds On, 20 Seconds Off
• Mode 2: 25 Seconds On, 30 Seconds Off
• Mode 3: 40 Seconds On, 40 Seconds Off
• Mode 4: Custom Programmable
• Mode 5: Weekly Cycle (Set by User)
• Mode 6: Continuous Misting

Features:

• 1000 PSI operation
• 120 Volt, 60 hz
• 68 decibel operation
• Simple On/Off
• 5″ 5 micron filter
• Pressure gauge
• Thermo reset button
• 5 foot power cord with plug
• Water shut off valve
• Auto drain valve
• Low pressure safety shut down switch
• Rubber mounted motor
• 3 piston direct drive pump unit
• Remote comes with unit
• Scale X add on filtration is available upon request

Specifications:

• 1 hp, 120 Volt motor
• 1.25 GPM pump unit
• Flow rate .95 GPM @ 1750 RPM
• Pump nozzle range running .008 orifice size minimum 25 – 65 max @ 1000 PSI
• 7.6 Running Amps
• 3/4 Hose water inlet
• 3/8″ Push lock fitting to connect to mist line or water feed 3/8″ nylon tubing
• Will need a dedicated water source and regular 120 V outlet for plug
• Dimensions: 21.7″x13″x14.6″
• Weight 62 Lbs
• Do not use the pump during adverse weather conditions
