Fan Retro Fit Kits, Makes Your Fan A Misting Fan

These kits have been designed to install right to your 14” fans up to 36” fans. The mist ring can be zip tied to the front of your fan then screw on your water hose. Tubing is 3/8” O.D, 10/24 threaded risers with ¼” NPT female port on ring.

Kit Contents:

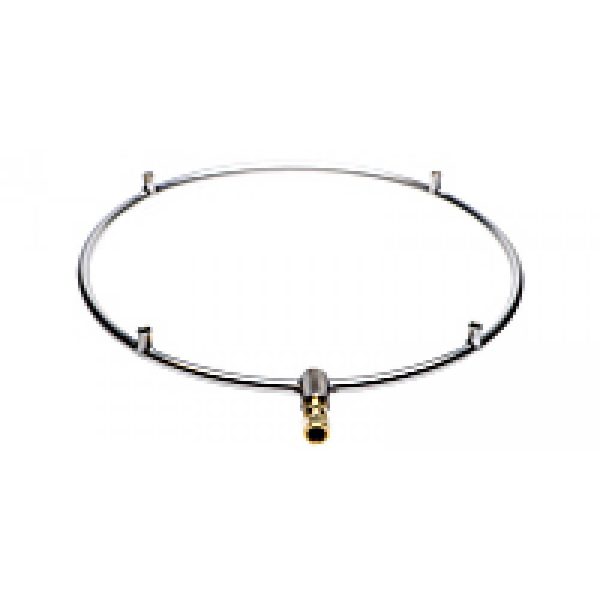

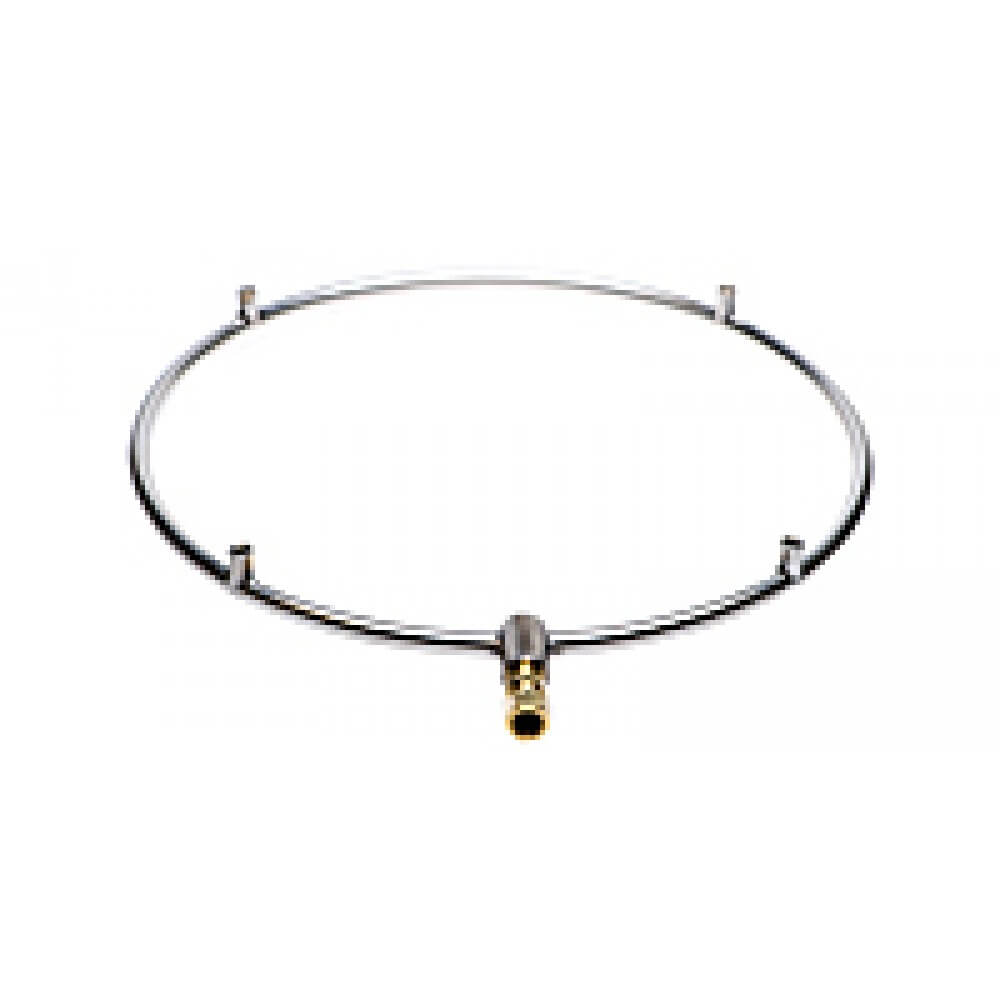

1 Mist Ring (4 to 12) Nozzles

1 25Ft Roll Black 3/8” Nylon Tubing

1 Male Adapter ¼” x 3/8” Compression

1 Hose Adapter 3/8” Compression x ¾”

1 Calcium Inhibitor Filter

Depending on ring size selected you will receive 4 to 12 nozzles, .014 orifice 10/24 thread

• 18″ fans will use 12″ misting ring
• 24″ fans will use 16″ misting ring
• 30″ fans will use 22″ misting ring
• 36″ fans will use 28″ misting ring
