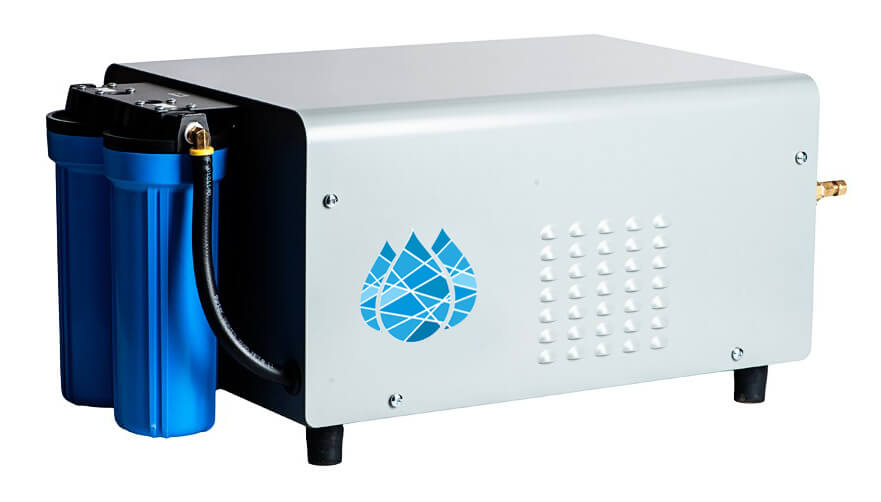

Enclosed Variable Speed VFD Misting Pumps

Starting at: $2,875.00

Add Scale X Filter?

Benefits of Scale X Filter: The Scale X filter effectively inhibits the formation of calcium-carbonate scale to keep your nozzles cleaner longer. Add a Scale X filter to your pump; minimize nozzle maintenance; enjoy your misting system hassle-free.

Product price
Additional options total:
Order total:

These pumps are generally used to separate mist zones. For example; if you have 4 patios and only need mist to one patio at a time these pumps can slow down or speed up depending on the demand of mist needed, or if you have 6 mist fans and you only want to run mist to only 2 fans the pump system will slow down and only provide mist to only the 2 fans.

These VFD pumps can be built with electric valves that can be switched remotely from anywhere you would like to control the system.

High pressure ball valves can also be used for creating zones manually near the pump or area your needing mist.

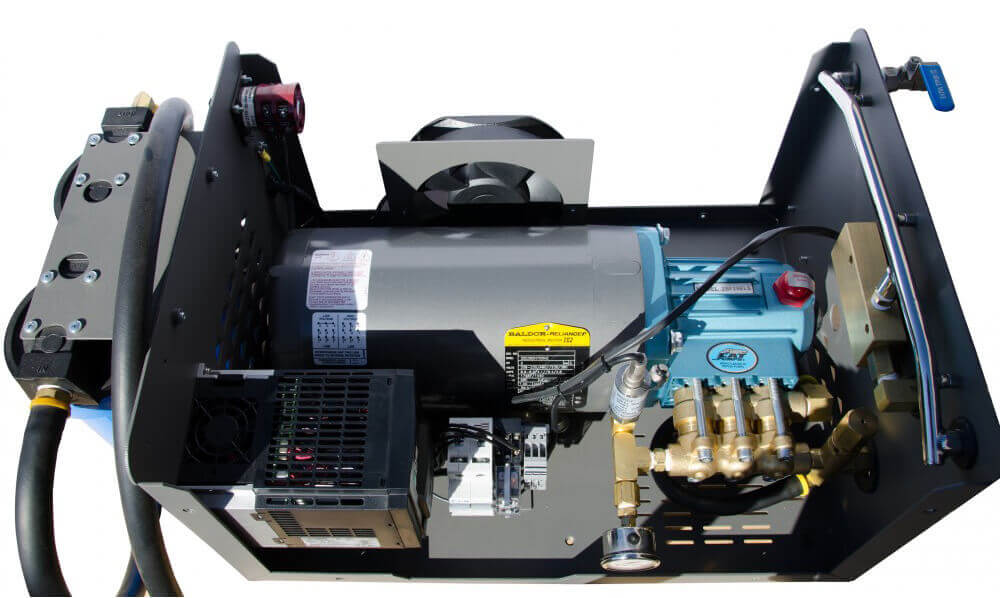

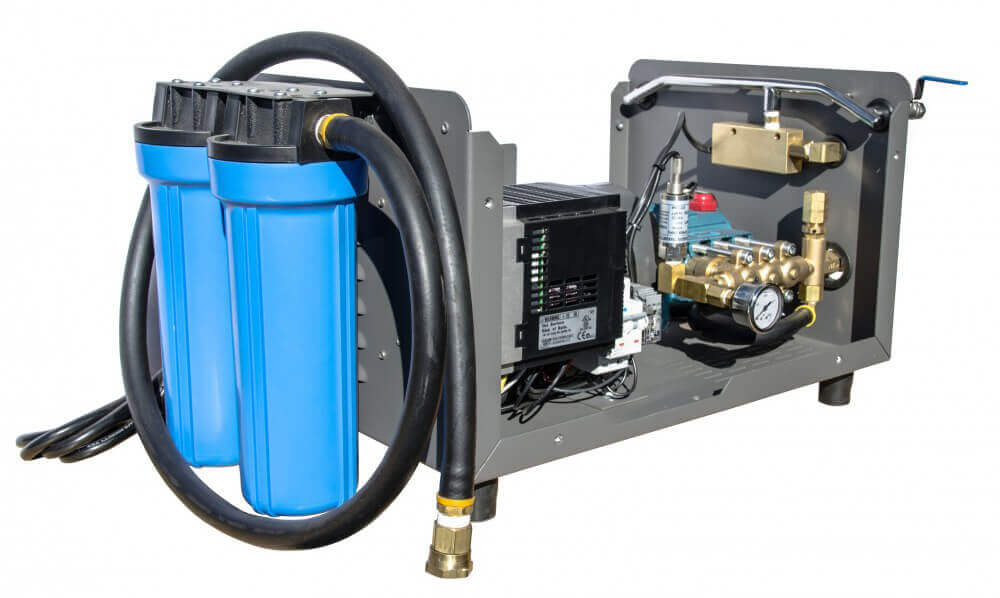

TEFC Electric Motor, Dual Filter, Pressure Gauge, Drain Valve, Adjustable Regulator, Energy Savings, Continuous Duty, Motor Overload Protection, Low Water pressure Cut-Off.

Our pump units require maintenance about every 500 hrs or once a year for most systems.

Oil change and filter replacment. See part numbers below.

Features:

Weight and Dimensions 125 lbs; 18″L 16″W 13″H

TEFC Electric Motor (Item # 31041), Glycerin Filled Pressure Gauge (Item # 57251), Adjustable Regulator, Solenoid (Item # 30375)

One 10″ Filter Element 1 Micron (Item # 57006)

One 10″ Filter Element 5 Micron (Item # 57011)

Replacement CAT pump oil (Item # 57025)

  • 230 Volt / Single Phase
  • Low Water Protection Programmed
  • Energy Saving
  • Continuous Duty
  • Dual Filtration
  • Outdoor Rated-Weather Resistant
  • Soft Start
  • Disconnect Switch
  • Low Noise Level
  • Weight: 100 lbs
  • Dimensions: 31 x 16 x 13 in
  • Electric high pressure zones valves can be added 24 or 120 volt
  • Number of Zones: 1, 2, 3, 4

Reviews

There are no reviews yet.

Be the first to review “Enclosed Variable Speed VFD Misting Pumps”

Specs

GPM.004 Misting Nozzles.006 Misting Nozzles.008 Misting Nozzles.012 Misting Nozzles.016 Misting NozzlesVoltageAmpsWeightDimensions
.33 GPM20-4013-268-155-104-8120 Volt 60Hz8.4 Amps65 lbsL 24" W 11" H 13"
.5 GPM30-6020-4013-259-186-13120 Volt 60Hz8.4 Amps65 lbsL 24" W 11" H 13"
1 GPM60-12040-8025-50 18-3612-25120 Volt 60Hz8.4 Amps65 lbsL 24" W 11" H 13"
1.5 GPM94-18858-11637-7526-5319-38120 Volt 60Hz14 Amps55 lbL 24" W 11" H 13"
2.1 GPM125-24580-16050-10036-7225-50230 Volt 60 Hz8 Amps125 lbL 18" W 16" H 13"
3.0 GPM188-376116-3275-15053-10638-76220 Volt 60 Hz8 Amps125 lbL 26" W 16" H 13"
